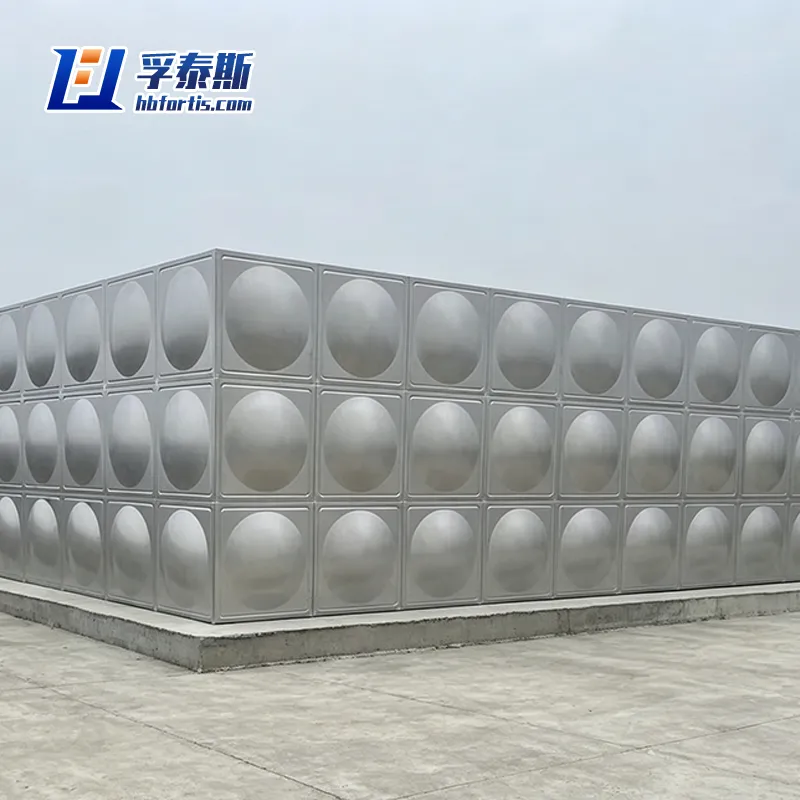

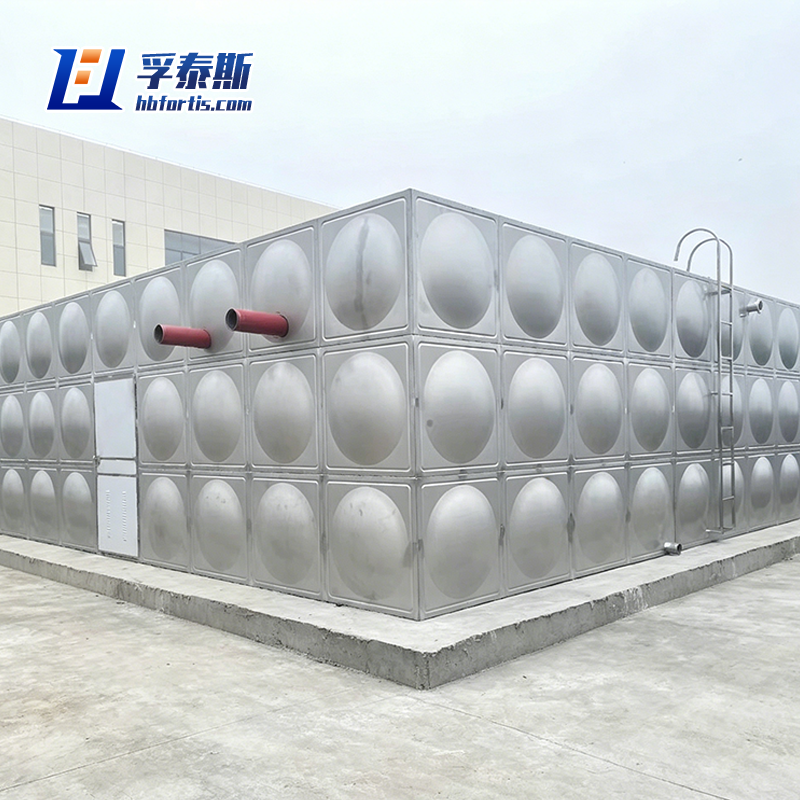

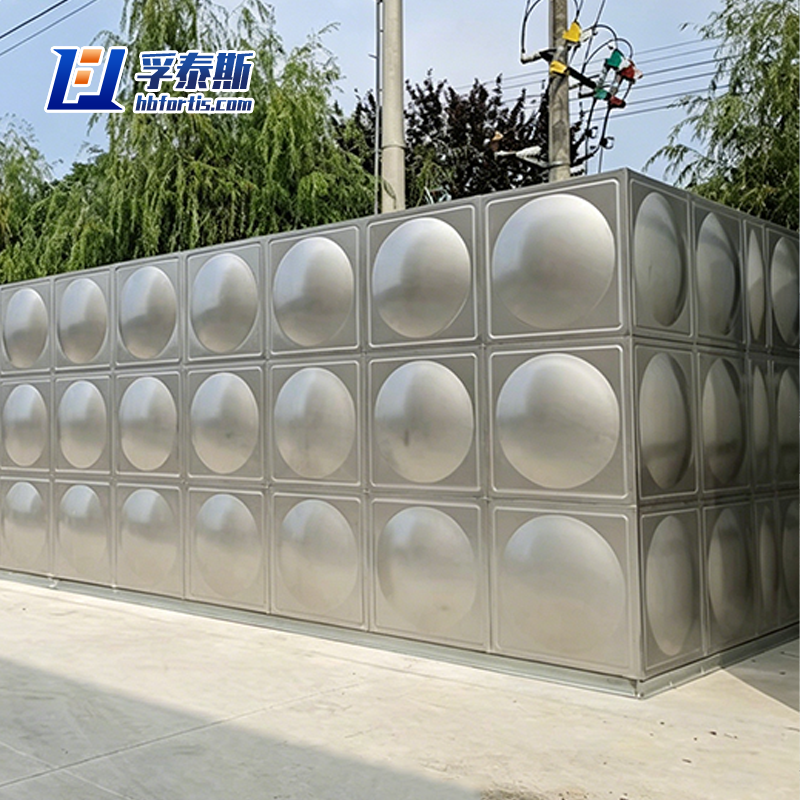

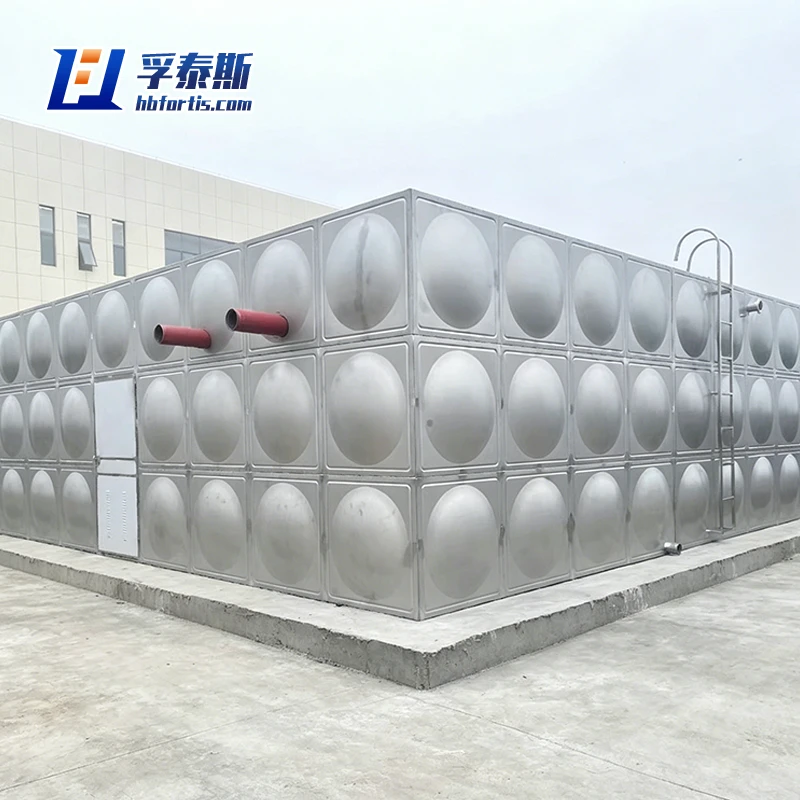

Stainless Steel Panel Water Tank for Fire Reserve & Potable Storage | China Exporter

 Ship-Flat Panelization for Maximum Container Economics

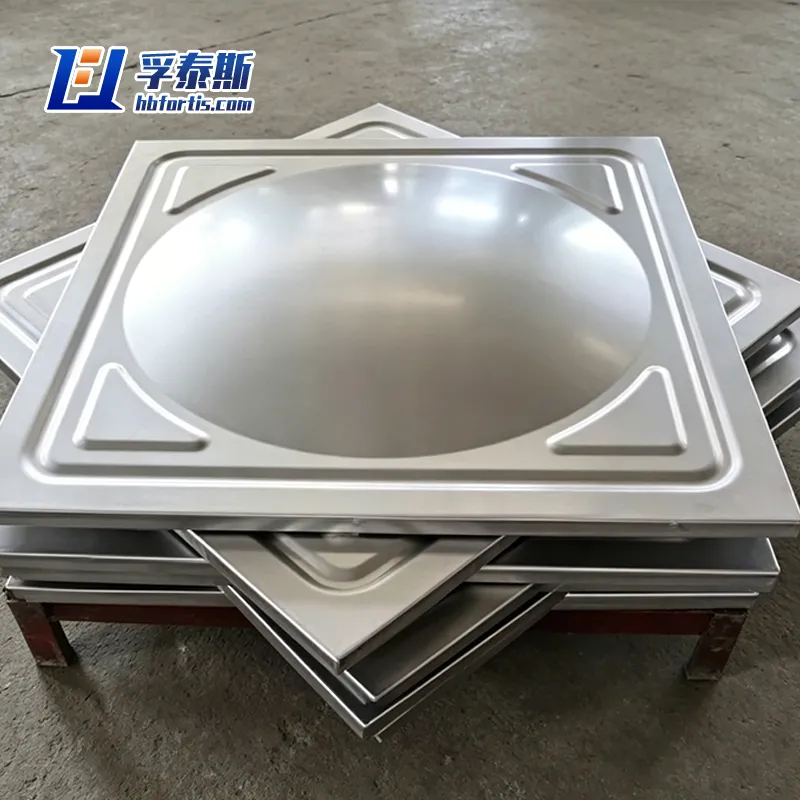

Our stainless steel panel water tank ships as a flat-pack kit of precision-stamped sheets, corner columns, and tie rods—not as a bulky pre-welded vessel. This reduces occupied cubic volume by nearly 65% compared to fabricated cylindrical tanks, allowing us to fit a 200m³ capacity tank into a single 40HQ container. We strategically arrange panels with interleaved cardboard dividers to prevent surface scratching during sea freight, and our loading plan is verified by actual container stuffing simulations. For your procurement team, this means lower freight costs, fewer shipping splits, and the ability to receive the entire tank system in one consignment, even for remote port destinations like Mombasa or Chittagong.

On-Site Bolt-Assembly with Zero Hot Work Permits
Traditional welded tanks require certified welders, fire watch personnel, and on-site power generators—all of which add project delays and safety risks. Our panel tank uses high-strength stainless steel bolts (grade A2-70) with captive neoprene washers that seal at every joint through compression alone. Assembly requires only socket wrenches and torque wrenches, completely eliminating hot work permits, arc flash hazards, and welding fume exposure. This makes our tank the preferred choice for oil refinery auxiliary units, hospital backup water rooms, and food packaging plants where open flames are strictly forbidden during operation hours. We also include a torque-sequence chart that enables a four-person crew to erect a 150m³ tank within a single 8-hour shift.

Dual-Use Zoning: Fire Reserve + Drinking Water in One Footprint
For commercial high-rises and industrial campuses with limited real estate, we engineer our stainless steel panel tank with an internal partition plate that creates two independent compartments within the same outer shell. One section serves as a dedicated fire reserve basin with a vortex-breaking suction well (NFPA 22 compliant), while the other compartment stores potable water with a separate food-grade EPDM liner and a breather vent with insect screen. This dual-zone configuration eliminates the need for two separate tank foundations and reduces interconnecting pipework by nearly 40%, saving both capital expenditure and underground utility space.
