The project introduces an innovative Composite Fiberglass Modular Isolation System, combining FRP materials with a highly modular design to replace traditional concrete barriers. This solution provides a replicable and scalable model for the modernization of traditional infrastructure.

Project Background

A provincial level highway section, due to temporary road realignment, requires temporary maintenance operations and traffic isolation. The traditional isolation method encountered several practical challenges.

1. Traditional concrete crash barrier each weighs up to 150 kg, requiring heavy machinery for transportation and deployment, resulting in low efficiency.

2. Poor visibility at night, with reflective markings prone to stain and damage.

3. Debris from the barrier after accidental collisions may lead to secondary accidents.

Key Performance Requirements

Rapid deployment and removal

Excellent impact resistance

All-weather high visibility

Modular, reusable design

Scheme Design

Innovative Concept

Composite Fiberglass Modular Isolation System

Design Concept

Combining FRP (Fiber-Reinforced Plastic) materials with a highly modular design to replace traditional concrete barriers.

System Components

Standard isolation module

Multifunctional connectors (with quick-release function)

Integrated LED warning system

Solutions

Phase I: Design and Testing (30 Days Prior to Construction)

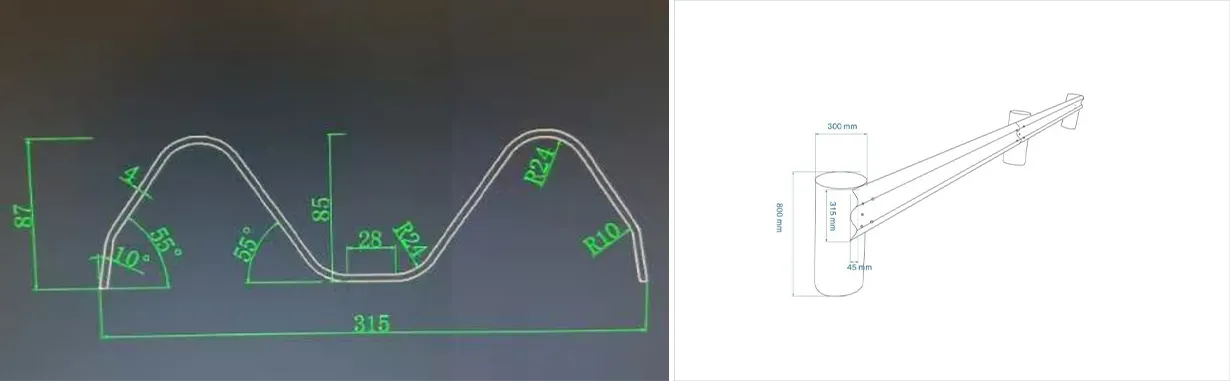

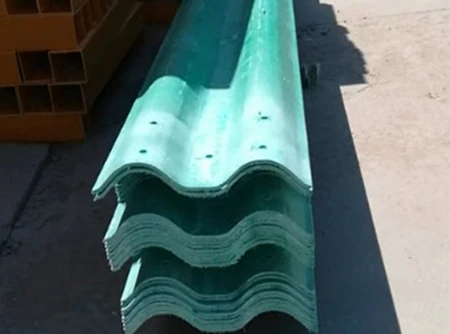

● Structural Design: Utilizes curved FRP protective panels made from weather-resistant resin and glass fiber.

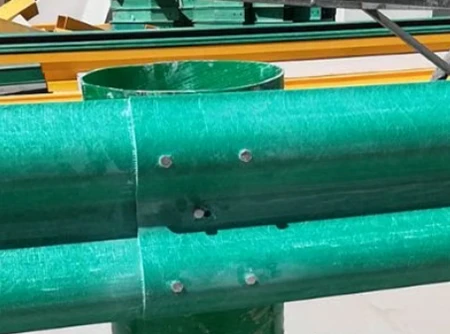

● Connection System: Develops a patented quick-release buckle system, achieving a connection speed of 15 seconds per module.

● Testing: Field Environment Testing: Includes wind resistance (Grade 10), UV resistance, and waterproof immersion tests.

Phase II: Pilot Deployment (During Maintenance Period)

● Personnel Training:

1. Comprehensive operational training can be completed in 2 hours.

2. Establishment of emergency response protocols.

● Construction Process Optimization:

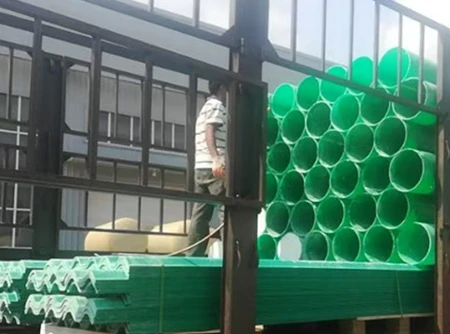

1. 1 hour: Transport to the starting point of the work zone (One medium-duty truck can carry 80 modules).

2. 1.5 hours: Deploy the isolation barrier (A two-person team can deploy 100 meters per hour).

3. 7 hours: Standard maintenance operations.

4. 1 hour: Rapid recovery (100% recovery rate with zero loss).

Value of the Solution

The implementation of the FRP modular isolation system delivered measurable improvements in efficiency, safety, and cost control.

Performance Comparison: Traditional Concrete Barriers vs. FRP Modular System

Feature	Concrete Barrier	FRP Modular System	Improvement Effect
Weight	150 kg/unit	25 kg/unit	83% weight reduction, transportable by two workers
Impact Resistance	Rigid fragmentation	Elastic deformation absorbs energy	No debris scattering upon collision
Visibility	Relies on additional reflective strips	Inherent material coloring integrated LEDs	Visibility distance increased to 800 m
Weather Resistance	Prone to cracking due to freeze-thaw cycles	Stable performance from -50°C to 80°C	Adaptable to all-weather conditions
Service Life	3–5 years	Over 10 years	60% reduction in lifecycle costs
Environmental Friendliness	Difficult to recycle	95% of materials recyclable	Compliant with environmentally friendly construction standards

Results & Project Benefits：

By redefining traditional infrastructure maintenance tools through material innovation, this project transforms a seemingly simple isolation barrier into a smart, efficient, and environmentally friendly system solution. It clearly demonstrates the engineering philosophy of “small innovation, significant benefit.”

The successful application of FRP materials in the transportation sector provides a replicable and scalable model for the modernization of traditional infrastructure practices. Beyond expressway maintenance, this solution can be widely applied to urban roadworks, temporary traffic management, and other municipal maintenance projects.
