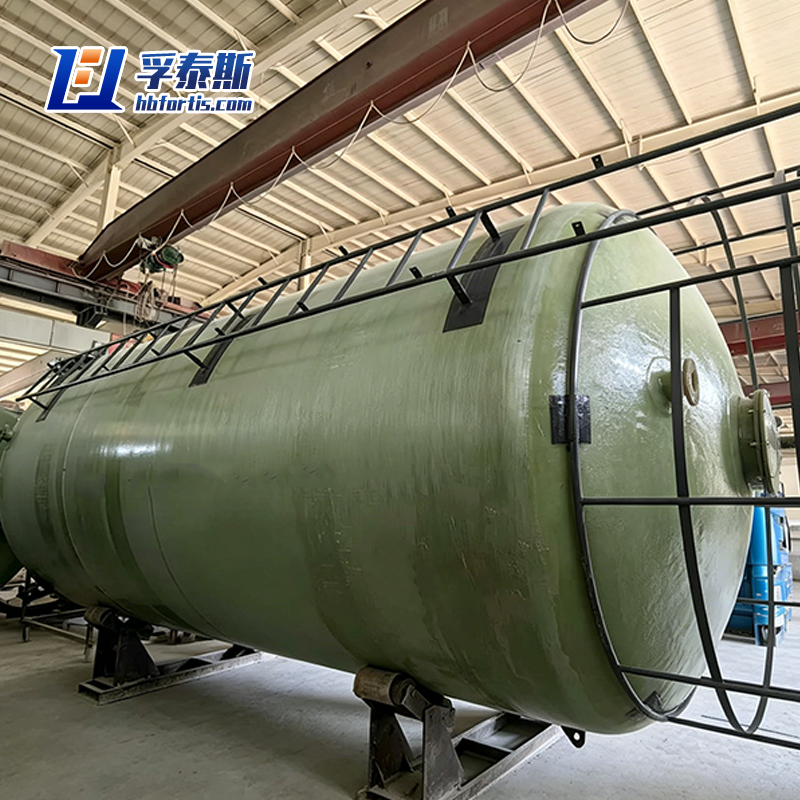

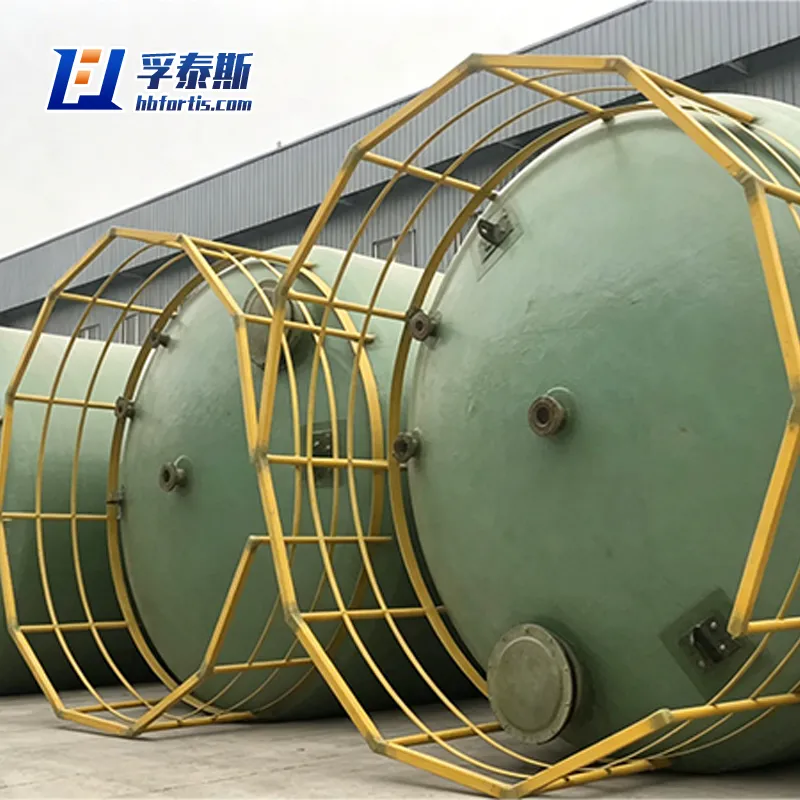

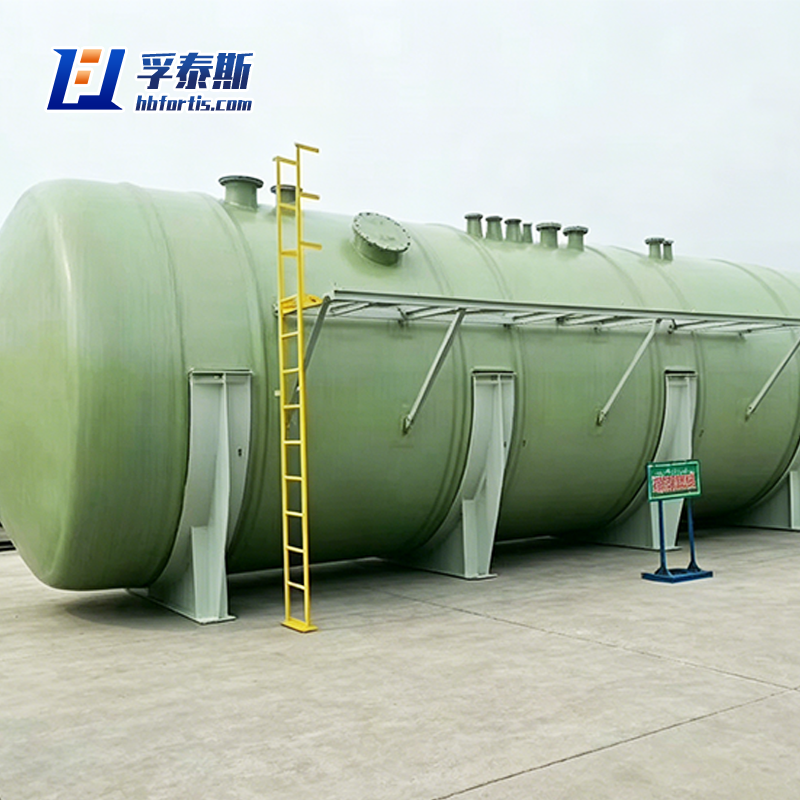

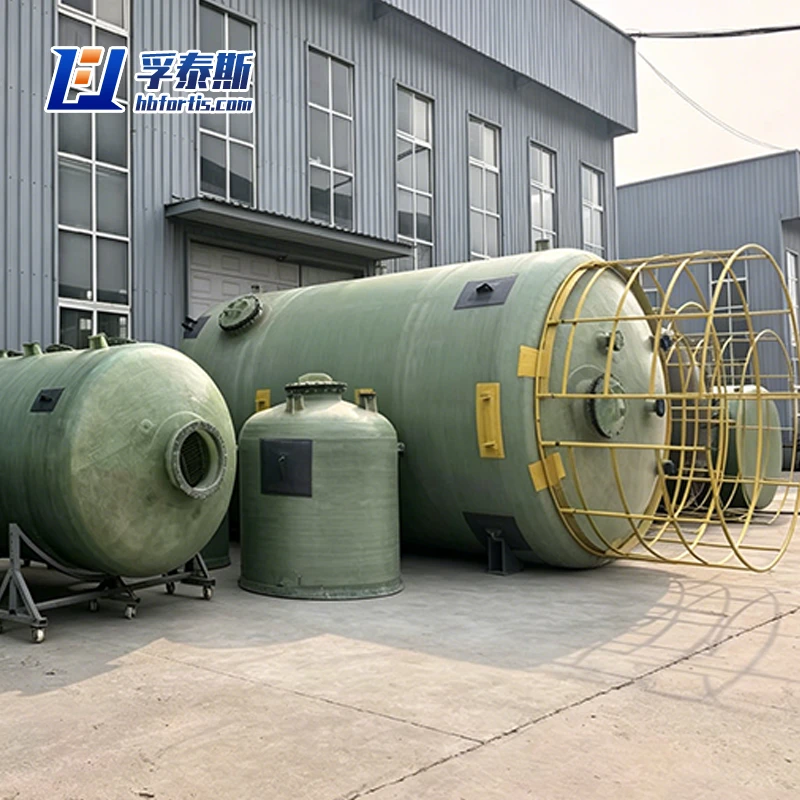

Fiberglass GFRP FRP Horizontal Storage Tanks Chemical Plant Supplier FT-HST6b

As a dedicated FRP horizontal storage tank exporter, we engineer corrosion-resistant, lightweight, and UV-stabilized vessels specifically for demanding applications including bulk acid containment, industrial wastewater neutralization, firewater reservoirs, and oilfield produced-water storage. Our horizontal configuration optimizes space utilization in plants with low headroom and facilitates easier transport and installation. Every tank is compression-molded or filament-wound to AWWA and ASME RTP-1 standards, with thickness tailored to your specific fluid density and temperature. We provide end-to-end logistics support, from 3D drawing verification to on-site assembly guidance, ensuring your project complies with local environmental and safety regulations. Backed by third-party material testing (ASTM D2583, D790) and a 10-year structural warranty, our solutions reduce maintenance cycles by up to 60% compared to carbon steel or concrete alternatives, directly lowering your total cost of ownership.

Hebei Fortis Technology Co., Ltd Product Brochure

Download

Inquire Now Next Product

Product Advantages Parameter Specifications

Product Advantages

Our horizontal FRP storage tanks deliver five distinct competitive advantages that directly address the pain points of plant engineers and procurement managers.

First, corrosion immunity – formulated with vinyl ester or bisphenol-A resin liners, our tanks withstand pH ranges from 1 to 14, aggressive organic solvents, and high-chloride seawater without pitting or stress-cracking, eliminating the costly epoxy recoating required for steel tanks every 18–24 months.

Second, structural efficiency in horizontal orientation – the low-profile cylindrical design reduces foundation load by 35% versus vertical towers, enables gravity-fed drainage with minimal heel (residual liquid <2%), and allows safe stacking or tandem installation inside existing pump stations, container frames, or trench bunds where ceiling height is restricted.

Third, weight-driven logistics savings – at only one-seventh the density of carbon steel, a 30,000-liter horizontal unit can be shipped via flat-rack container without overweight surcharges, and installed using a single 25-ton mobile crane instead of heavy-lift equipment, cutting on-site erection time from three days to under six hours.

Fourth, maintenance-free outer layer – our UV-resistant gelcoat (tested to 3,000 hours QUV) prevents chalking and fiber blooming, while the smooth internal surface (Ra < 3.2 μm) resists bacterial biofilm and scale deposition, reducing cleaning frequency by 50% in food-grade or potable-water applications.

Fifth, design flexibility – we tailor nozzle orientations, manway diameters (up to 600 mm), integral stiffening ribs, and saddle supports to your specific anchor-bolt pattern, with optional secondary containment shells or heating/cooling coils embedded during winding—all backed by a 15-year warranty against blowout and a guaranteed hoop-stress safety factor of 10:1 at maximum operating pressure.

Parameter Specifications

Product	Horizontal Storage Tank
F=D/4
Model	Volume(m³)	Diameter(mm)	Height(mm)	Number of Supports N1
FT-HST1	1	1000	1450	2
FT-HST2a	2	1000	2730	3
FT-HST2b	2	1200	1990	2
FT-HST2c	2	1400	1560	2
FT-HST3a	3	1000	4010	4
FT-HST3b	3	1200	2870	2
FT-HST3c	3	1400	2200	2
FT-HST4a	4	1200	3760	3
FT-HST4b	4	1400	2850	3
FT-HST5	5	1400	3500	3
FT-HST6	6	1600	3300	2
FT-HST7	7	1600	3800	3
FT-HST8a	8	1600	4300	3
FT-HST9	9	1600	4780	3
FT-HST10a	10	1600	5300	3
FT-HST10b	10	2000	4250	3
FT-HST11a	11	1600	5800	4
FT-HST11b	11	2000	4640	3
FT-HST12a	12	1600	6280	4
FT-HST12b	12	2000	5040	3
FT-HST12c	12	2200	3540	2
FT-HST15a	15	2000	6220	3
FT-HST15b	15	2200	4330	2
FT-HST15c	15	2400	3750	2
FT-HST18a	18	2000	7400	4
FT-HST18b	18	2200	5120	2
FT-HST18c	18	2400	4410	2
FT-HST20a	20	2000	8190	4
FT-HST20b	20	2200	5650	3
FT-HST20c	20	2400	4850	2
FT-HST20d	20	2600	4220	2
FT-HST25a	25	2000	8310	4
FT-HST25b	25	2200	6960	3
FT-HST25c	25	2400	5960	2
FT-HST25d	25	2600	5160	2
FT-HST25e	25	2800	3740	2
FT-HST30a	30	2200	8280	4
FT-HST30b	30	2400	7060	3
FT-HST30c	30	2600	6100	3
FT-HST30d	30	2800	4560	2
FT-HST30e	30	3000	4100	2
FT-HST35a	35	2400	8170	3
FT-HST35b	35	2600	7050	3
FT-HST35c	35	2800	5370	2
FT-HST35d	35	3000	4820	2
FT-HST40a	40	2400	9270	3
FT-HST40b	40	2600	7990	3
FT-HST40c	40	2800	6180	2
FT-HST40d	40	3000	5520	2
FT-HST50a	50	2600	9870	4
FT-HST50b	50	2800	6990	2
FT-HST50c	50	3000	6240	3
FT-HST60a	60	2800	8620	3
FT-HST60b	60	3000	7660	3
FT-HST70a	70	2800	10240	3
FT-HST70b	70	3000	9050	3
FT-HST80a	80	3000	10470	4
FT-HST80b	80	3000	11880	4
