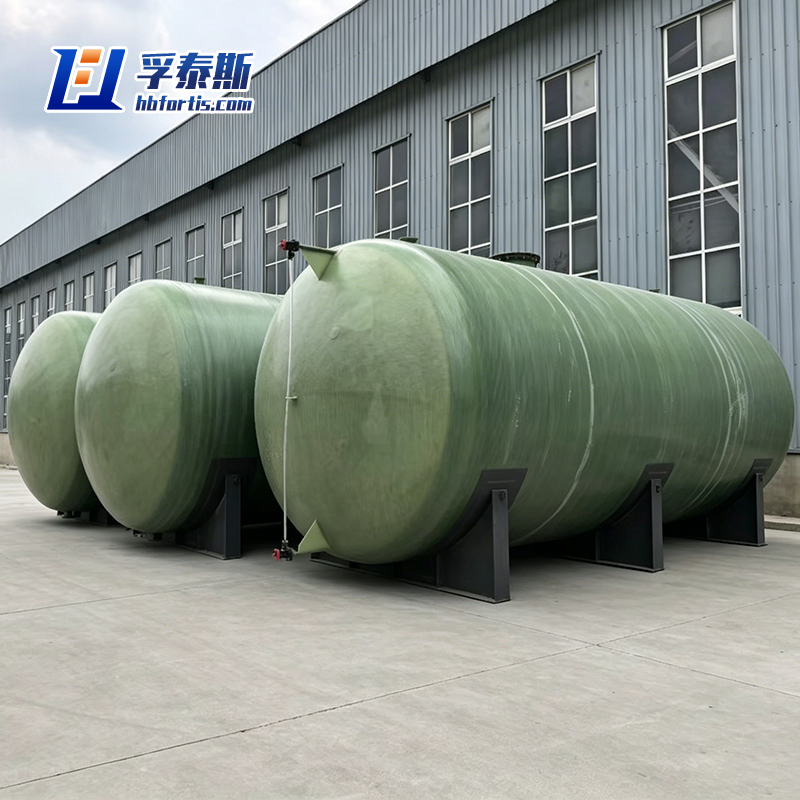

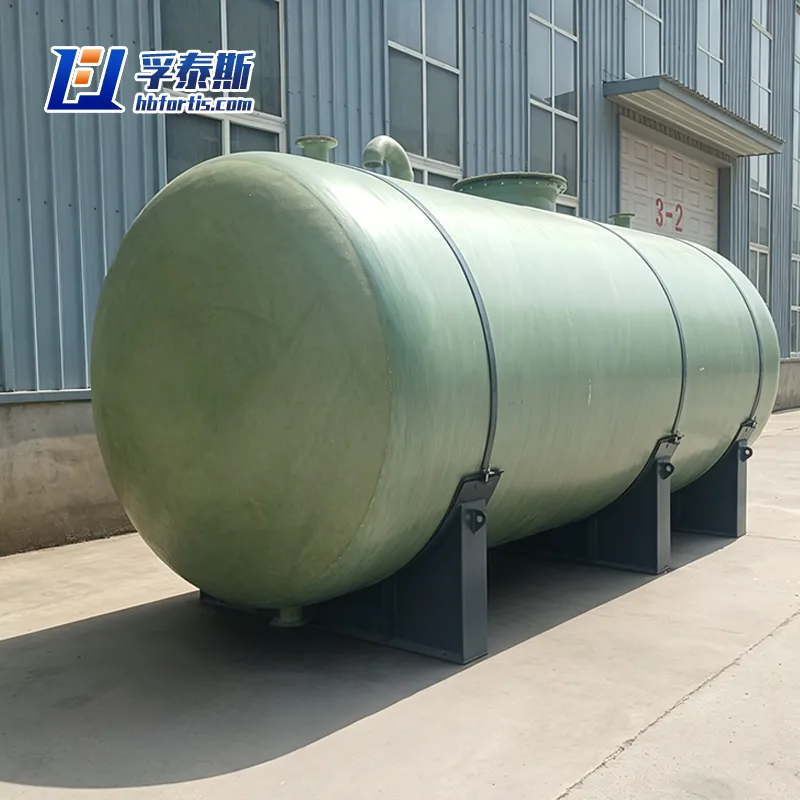

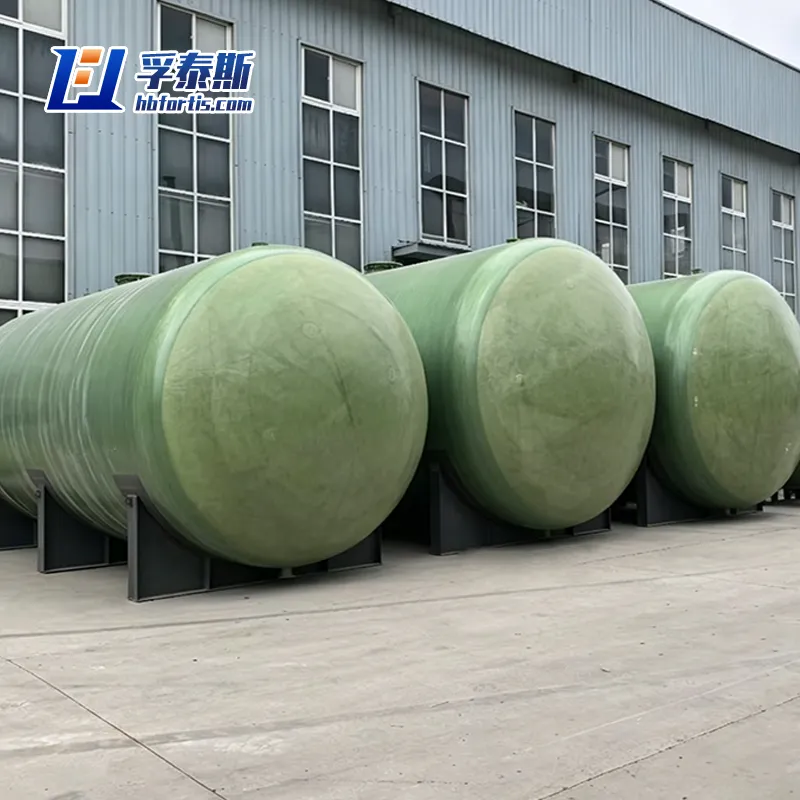

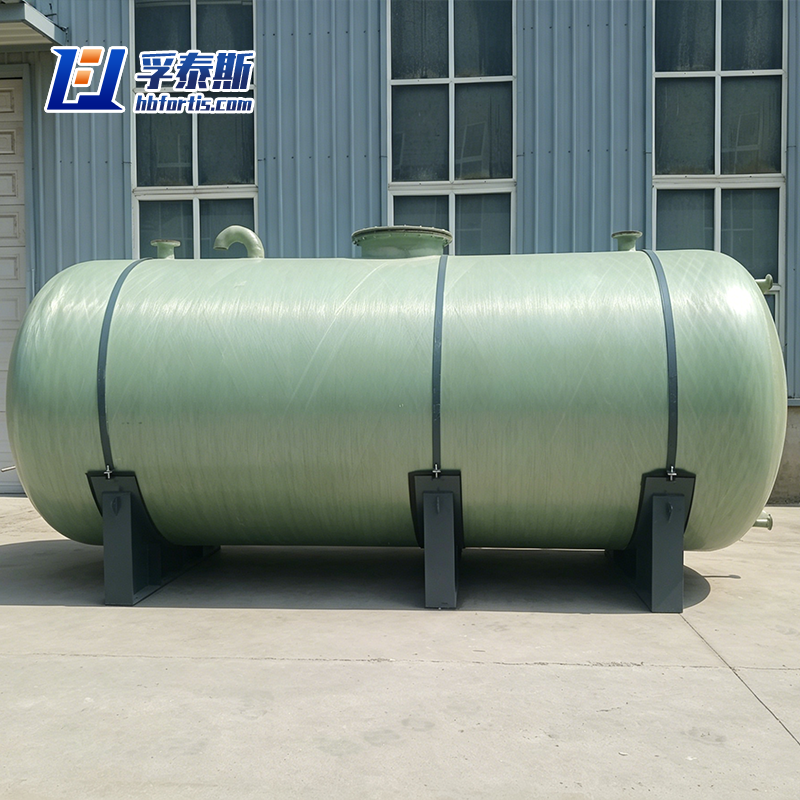

A FRP horizontal storage tank is a cylindrical vessel laid horizontally, manufactured using filament winding technology to store various liquids at atmospheric pressure. Unlike vertical tanks, our horizontal design offers lower center of gravity, making it ideal for applications with height limitations or where mobile pumping is required. These fiberglass tanks provide superior resistance to corrosion from strong acids, alkalis, and organic solvents, ensuring a service life of over 20 years with zero rust contamination.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
Our FRP horizontal storage tank delivers unmatched corrosion resistance against over 98% of aggressive chemicals including strong acids, alkalis, and industrial solvents, while its lightweight yet high-strength composite structure (only one-quarter the weight of carbon steel) significantly reduces transportation and installation costs. The seamless one-piece winding process ensures zero leakage risks compared to welded metal tanks, and the UV-stabilized gel coat exterior extends service life beyond 15–20 years without painting or cathodic protection. Designed for above-ground or underground installation with customizable nozzles, manholes, and supports, this horizontal configuration saves valuable floor space in chemical plants, wastewater treatment facilities, and electroplating workshops, all while requiring virtually no maintenance throughout its operational lifespan.
Application Scenarios
Chemical and petrochemical industry: Storage of hydrochloric acid, sulfuric acid, alkali, process intermediates, corrosive wastewater.
Environmental protection and water treatment industry: Storage of sulfuric acid, hydrochloric acid (for pH adjustment), sodium hypochlorite and other water treatment agents. As a middle water tank and pure water tank, ensure that the water quality is not polluted.
Metallurgy and power industry: The desulfurization (FGD) system of the power plant stores abrasive and corrosive media such as limestone slurry and gypsum slurry.
Paper and Food Industry: Engineered to withstand aggressive bleaching agents (chlorine, chlorine dioxide) and pulp in paper mills, while fully meeting food hygiene standards for use as fermentation, syrup, and storage tanks in the food and beverage sector.
Electron industry: Storage of high purity chemical reagents, such as etching solution, developing solution, etc.
Husbandry: As agricultural fertilizer tank, fermented feed tank, etc.
Parameter Specifications
|
Product |
Horizontal Storage Tank |
|||
|
F=D/4 |
||||
|
Model |
Volume(m³) |
Diameter(mm) |
Height(mm) |
Number of Supports N1 |
|
FT-HST1 |
1 |
1000 |
1450 |
2 |
|
FT-HST2a |
2 |
1000 |
2730 |
3 |
|
FT-HST2b |
2 |
1200 |
1990 |
2 |
|
FT-HST2c |
2 |
1400 |
1560 |
2 |
|
FT-HST3a |
3 |
1000 |
4010 |
4 |
|
FT-HST3b |
3 |
1200 |
2870 |
2 |
|
FT-HST3c |
3 |
1400 |
2200 |
2 |
|
FT-HST4a |
4 |
1200 |
3760 |
3 |
|
FT-HST4b |
4 |
1400 |
2850 |
3 |
|
FT-HST5 |
5 |
1400 |
3500 |
3 |
|
FT-HST6 |
6 |
1600 |
3300 |
2 |
|
FT-HST7 |
7 |
1600 |
3800 |
3 |
|
FT-HST8a |
8 |
1600 |
4300 |
3 |
|
FT-HST9 |
9 |
1600 |
4780 |
3 |
|
FT-HST10a |
10 |
1600 |
5300 |
3 |
|
FT-HST10b |
10 |
2000 |
4250 |
3 |
|
FT-HST11a |
11 |
1600 |
5800 |
4 |
|
FT-HST11b |
11 |
2000 |
4640 |
3 |
|
FT-HST12a |
12 |
1600 |
6280 |
4 |
|
FT-HST12b |
12 |
2000 |
5040 |
3 |
|
FT-HST12c |
12 |
2200 |
3540 |
2 |
|
FT-HST15a |
15 |
2000 |
6220 |
3 |
|
FT-HST15b |
15 |
2200 |
4330 |
2 |
|
FT-HST15c |
15 |
2400 |
3750 |
2 |
|
FT-HST18a |
18 |
2000 |
7400 |
4 |
|
FT-HST18b |
18 |
2200 |
5120 |
2 |
|
FT-HST18c |
18 |
2400 |
4410 |
2 |
|
FT-HST20a |
20 |
2000 |
8190 |
4 |
|
FT-HST20b |
20 |
2200 |
5650 |
3 |
|
FT-HST20c |
20 |
2400 |
4850 |
2 |
|
FT-HST20d |
20 |
2600 |
4220 |
2 |
|
FT-HST25a |
25 |
2000 |
8310 |
4 |
|
FT-HST25b |
25 |
2200 |
6960 |
3 |
|
FT-HST25c |
25 |
2400 |
5960 |
2 |
|
FT-HST25d |
25 |
2600 |
5160 |
2 |
|
FT-HST25e |
25 |
2800 |
3740 |
2 |
|
FT-HST30a |
30 |
2200 |
8280 |
4 |
|
FT-HST30b |
30 |
2400 |
7060 |
3 |
|
FT-HST30c |
30 |
2600 |
6100 |
3 |
|
FT-HST30d |
30 |
2800 |
4560 |
2 |
|
FT-HST30e |
30 |
3000 |
4100 |
2 |
|
FT-HST35a |
35 |
2400 |
8170 |
3 |
|
FT-HST35b |
35 |
2600 |
7050 |
3 |
|
FT-HST35c |
35 |
2800 |
5370 |
2 |
|
FT-HST35d |
35 |
3000 |
4820 |
2 |
|
FT-HST40a |
40 |
2400 |
9270 |
3 |
|
FT-HST40b |
40 |
2600 |
7990 |
3 |
|
FT-HST40c |
40 |
2800 |
6180 |
2 |
|
FT-HST40d |
40 |
3000 |
5520 |
2 |
|
FT-HST50a |
50 |
2600 |
9870 |
4 |
|
FT-HST50b |
50 |
2800 |
6990 |
2 |
|
FT-HST50c |
50 |
3000 |
6240 |
3 |
|
FT-HST60a |
60 |
2800 |
8620 |
3 |
|
FT-HST60b |
60 |
3000 |
7660 |
3 |
|
FT-HST70a |
70 |
2800 |
10240 |
3 |
|
FT-HST70b |
70 |
3000 |
9050 |
3 |
|
FT-HST80a |
80 |
3000 |
10470 |
4 |
|
FT-HST80b |
80 |
3000 |
11880 |
4 |
