FRP Production Line

Fiberglass GFRP FRP Pultrusion Production Line – High-Speed Pultrusion Machine | China Manufacturer

Share:

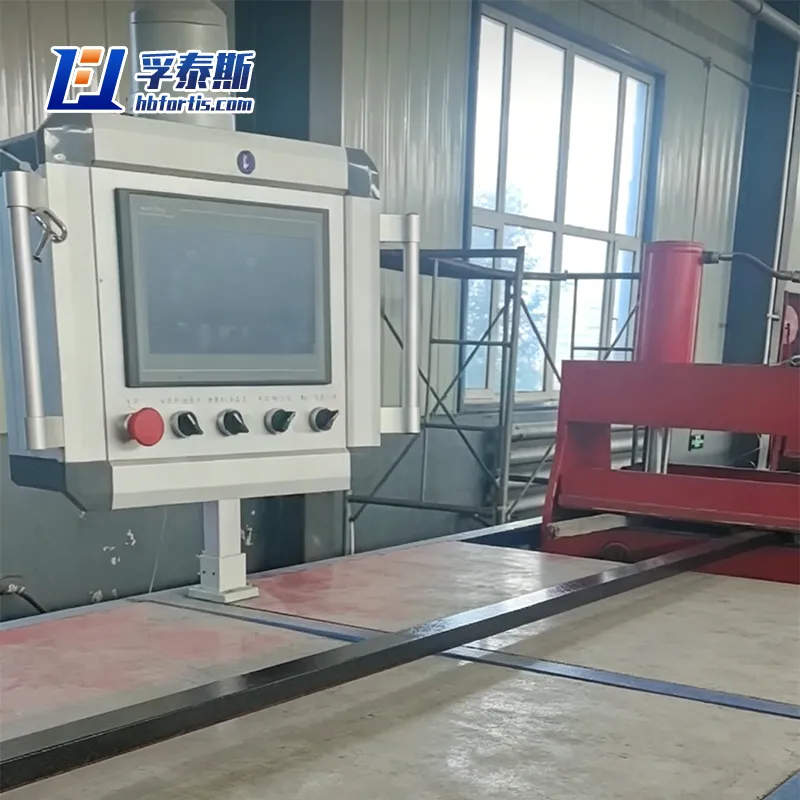

This intelligent FRP pultrusion production line stands out with its real-time production dashboard and remote troubleshooting capabilities. Operators can monitor pulling speed, die temperatures, cumulative output, and reject rate on a 10-inch touchscreen, with data exportable via USB for daily reporting. The automatic resin top-up system eliminates dry fiber defects by maintaining constant bath level without manual checking. A servo-driven flying cutter ensures cut length accuracy and square ends within 0.5 degrees, critical for structural profiles like ladder rails and rebar. The optional nano non-stick coating on pultrusion dies reduces drag force and extends cleaning intervals by roughly 40%. For overseas buyers, every PLC comes pre-configured for remote access via TeamViewer or secure VPN, allowing our engineers to adjust parameters or diagnose faults within hours rather than weeks. The line also includes an energy consumption counter that records kWh per kilogram of finished profile, helping you calculate true production costs. Whether you need round rods, square tubes, or custom FRP channels, this system provides documented first-pass yields above 95% in continuous runs of 16+ hours. A complete online demo showing actual production of your target profile can be arranged within three working days.

Hebei Fortis Technology Co., Ltd Product Brochure

Product Advantages

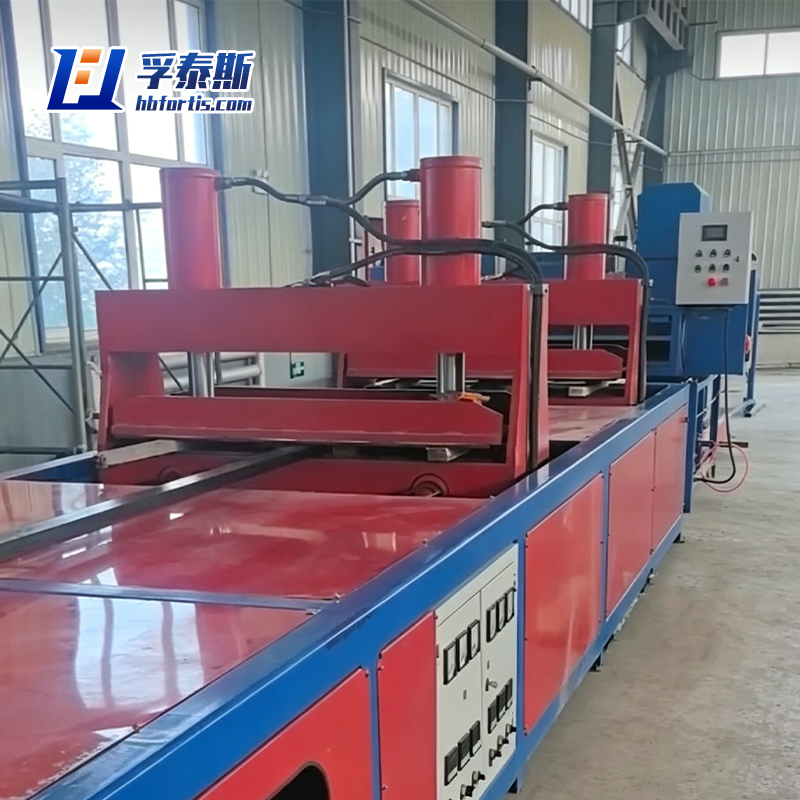

Hybrid drive traction system - The servo motor and hydraulic unit work together to achieve smooth start and stop as well as high torque output, suitable for lightweight profiles and heavy extruded parts.


Zone-independent heating mold - Multi-zone PID control, with a surface temperature difference of ≤ ±1.5℃ for the mold, reducing curing defects and improving the surface finish of the profiles.


Closed-loop resin impregnation - equipped with a liquid level sensor and an automatic refilling pump, reducing resin waste and controlling the variation in resin content within ±2%.


Intelligent cutting optimization - The fly-cutting system can dynamically adjust the cutting timing according to the movement speed of the profile, reducing the end burrs and the length error is ≤ ±2mm.


Remote operation support - Reserved Ethernet interfaces for devices, enabling remote parameter debugging and fault warning, reducing the response time for overseas customers in after-sales service.


Modular expansion design - Additional components such as film coating equipment, automatic stacking and palletizing machines, and label printers can be installed to achieve seamless upgrade of the post-processing automation.
