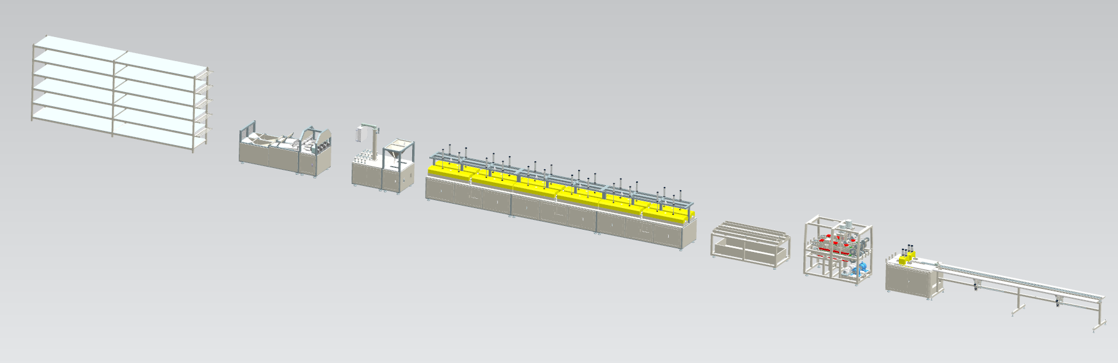

FRP Rebar Production Line: An Intelligent Manufacturing System for New-Generation Composite Reinforcement Materials.The FRP Rebar production line is a modern composite reinforcement material manufacturing system that integrates automated control, precision forming, and intelligent monitoring. With continuous production technology at its core, the system employs high-precision servo control and multi-stage temperature control technology to achieve fully automated production from raw material processing to finished product cutting. It is specifically designed for large-scale production of FRP rebars that comply with international standards such as ACI 440 and GB/T 26744.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
High-Output Configurations
Available in Double-Strand (1-out-2) and Four-Strand (1-out-4) models to maximize daily production capacity.
Broad Production Range
Capable of precision manufacturing for GFRP rebars from Φ3mm to Φ32mm, equipped with automated fixed-length cutting.
Optimized Craftsmanship
Features precise resin impregnation and spiral winding technology using E-glass roving to ensure superior structural strength and concrete bonding.
Turnkey Technical Support
We provide a complete service package, including dispatching 2 engineers for 7-day on-site commissioning, staff training, and full production formula transfer.
Parameter Specifications
|
Product |
FRP Rebar Production Line |
||||
|
|
|||||
|
Double-Strand FRP Rebar Production Specification Range: (Φ4-32mm) |
|||||
|
Diameter |
Linear Weight |
Production Speed (m/min) |
Effective Time |
Daily Output |
Weight (kg) |
|
4 |
0.025 |
3 |
1300 |
7800 |
195 |
|
5 |
0.039 |
3 |
1300 |
7800 |
304.2 |
|
6 |
0.056 |
2.5 |
1300 |
6500 |
364 |
|
8 |
0.1 |
2.5 |
1300 |
6500 |
650 |
|
10 |
0.16 |
2 |
1300 |
5200 |
832 |
|
12 |
0.23 |
2 |
1300 |
5200 |
1196 |
|
14 |
0.3 |
1.8 |
1300 |
4680 |
1404 |
|
16 |
0.4 |
1.6 |
1300 |
4160 |
1664 |
|
18 |
0.5 |
1.5 |
1300 |
3900 |
1950 |
|
20 |
0.63 |
1.4 |
1300 |
3640 |
2293.2 |
|
22 |
0.76 |
1.2 |
1300 |
3120 |
2371.2 |
|
24 |
0.9 |
1 |
1300 |
2600 |
2340 |
|
25 |
0.98 |
0.8 |
1300 |
2080 |
2038.4 |
|
28 |
1.23 |
0.8 |
1300 |
2080 |
2558.4 |
|
30 |
1.14 |
0.6 |
1300 |
1560 |
1778.4 |
|
32 |
1.6 |
0.6 |
1300 |
1560 |
2496 |
|
|
|||||
|
Four-Strand FRP Rebar Production Specification Range: (Φ4-16mm) |
|||||
|
Diameter |
Linear Weight |
Production Speed (m/min) |
Effective Time |
Daily Output |
Weight (kg) |
|
4 |
0.025 |
3 |
1300 |
15600 |
390 |
|
5 |
0.039 |
3 |
1300 |
15600 |
608.4 |
|
6 |
0.056 |
2.5 |
1300 |
13000 |
728 |
|
8 |
0.1 |
2.5 |
1300 |
13000 |
1300 |
|
10 |
0.16 |
2 |
1300 |
10400 |
1664 |
|
12 |
0.23 |
2 |
1300 |
10400 |
2392 |
|
14 |
0.3 |
1.8 |
1300 |
9360 |
2808 |
|
16 |
0.4 |
1.6 |
1300 |
8320 |
3328 |
