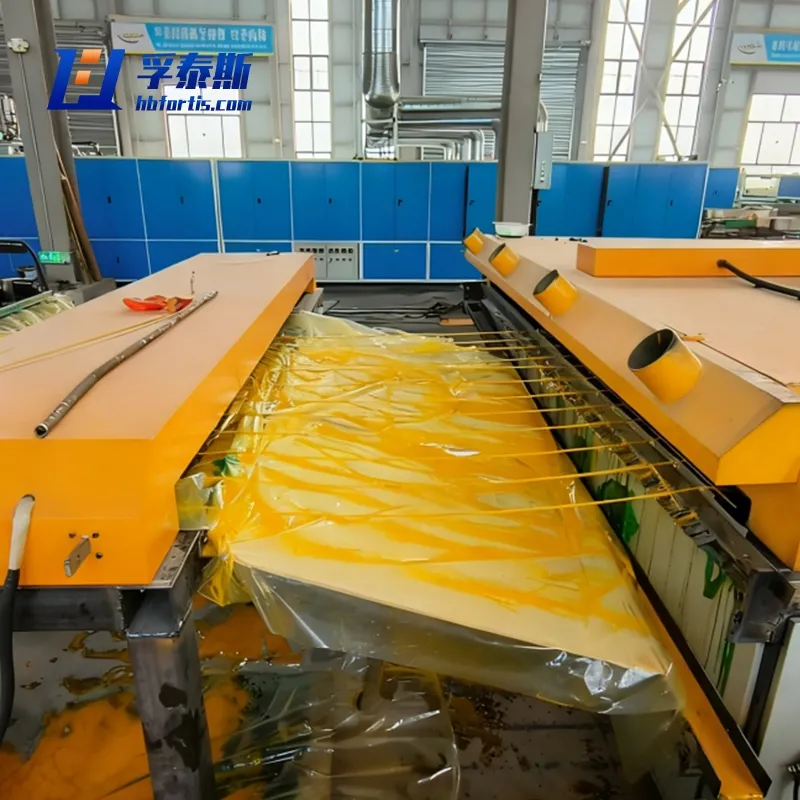

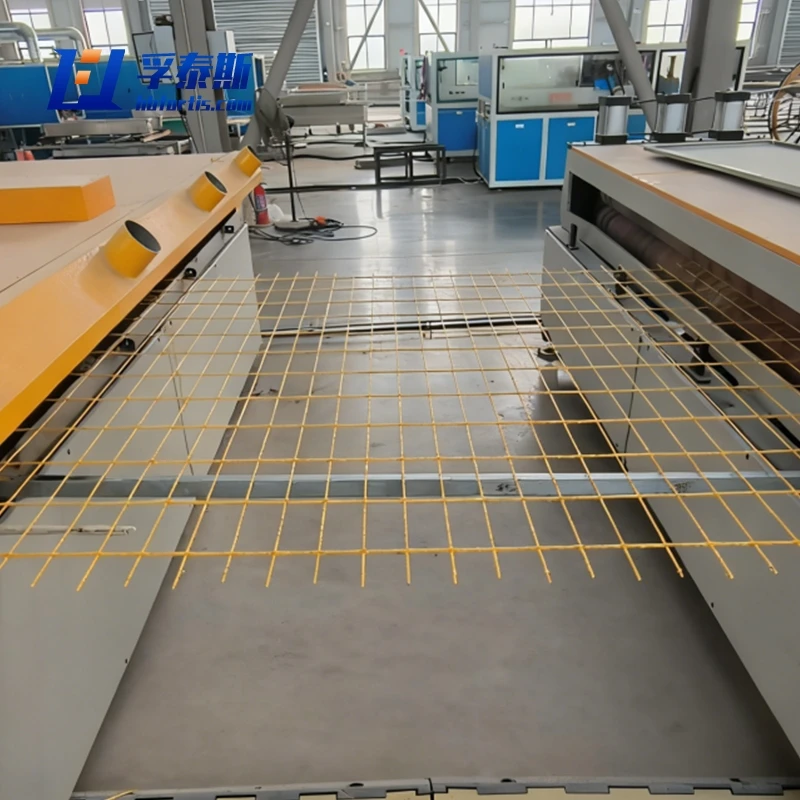

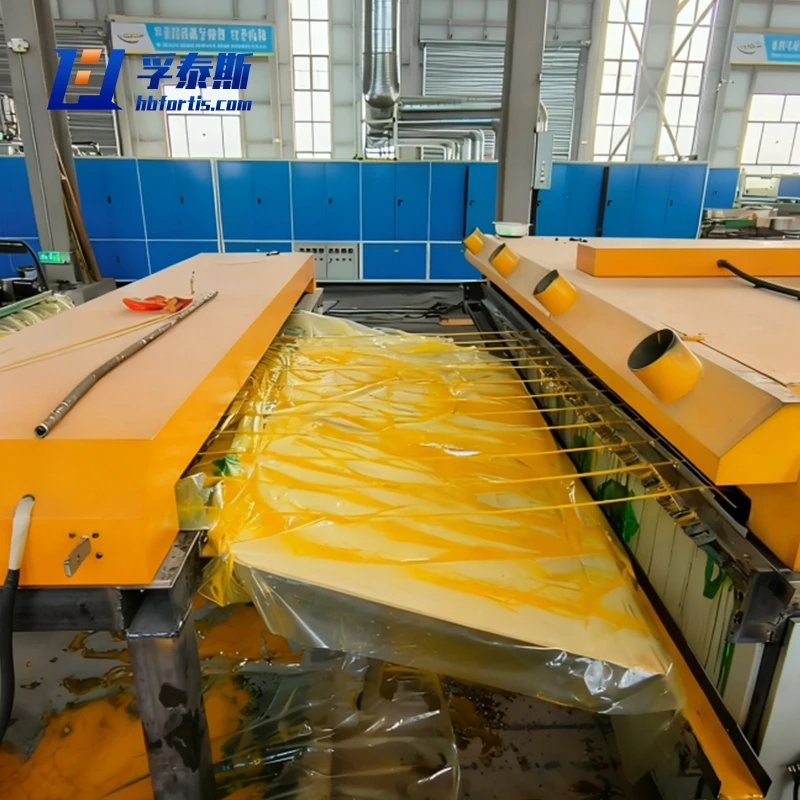

FRP Grating Mesh Fully Automated Continuous Production Line.The FRP Grating Mesh production line is an intelligent continuous production system integrating fiber directional placement, precise resin metering, and multi-axial weaving and curing. Adopting a modular design philosophy, it achieves fully unmanned operations from raw material feeding to finished product cutting through Industrial Internet of Things (IIoT) technology. It is specifically designed for producing various types of FRP grating mesh that comply with international standards such as EN124 and ASTM D635.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
Precision Fiber Stretching System
The integrated stretching unit processes raw fibers into strands with exact diameter and maximum tensile strength, ensuring the foundation for high-quality mesh weaving.
Superior Material Performance
Engineered to produce mesh that is corrosion-resistant, fire-retardant, and electrically insulating (transparent to electromagnetic waves).
High-Efficiency & Lightweight Output
The produced mesh offers a significant weight reduction compared to traditional steel while maintaining exceptional fatigue resistance, making it an ideal alternative for demanding structural projects.
Parameter Specifications
|
Product |
FRP Mesh Production Line |
|||||
|
|
||||||
|
FRP Mesh Equipment Performance Parameters |
|

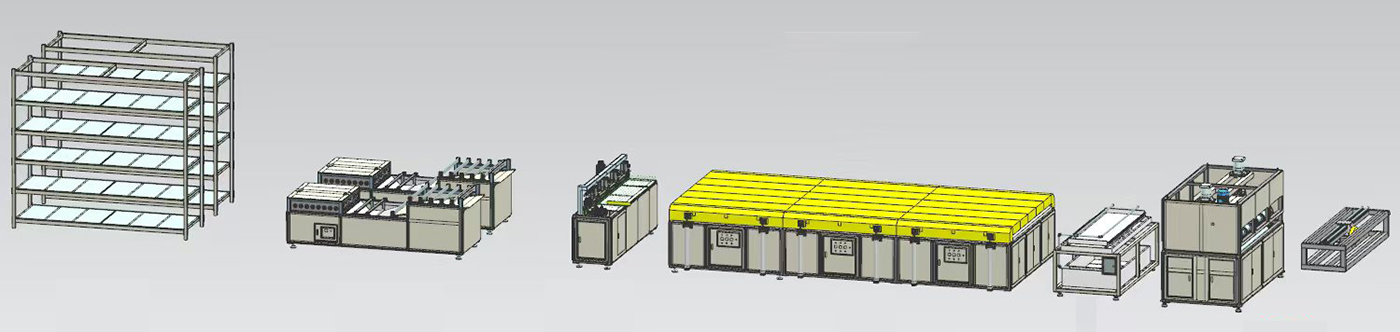

Component List of FRP Mesh Equipment |
||||
|
Parameter |
Specifications |
Component |
Dimensions (L×W×H) |
Quantity |
||
|
Production Width Range |
2200 mm |
Creel |
3000×1000×2750 |
3 Sets |
||
|
Adjustable Mesh Spacing |
50/100/150/200×(30-300) mm |
Impregnation Unit |
3040×1000×1050 |
2 Sets |
||
|
Applicable Diameter Range |
4/5/6mm |
Winding Unit |
3040×1000×1050 |
1 Set |
||
|
Production Speed |
400mm/min |

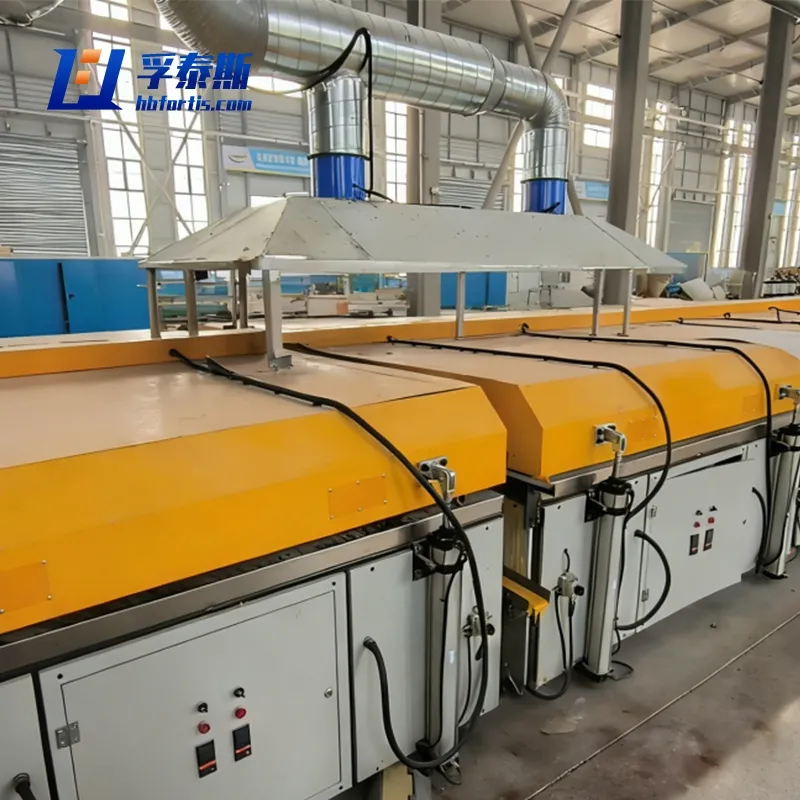

Heating Oven |
5850×2800×1200 |
1 Set |
||
|
Cutting Precision |
±25mm |
Traction Machine |
1040×2860×1520 |
1 Set |
||
|
Daily Output |
500-550m |
Cutting Saw |
2000×2900×1600 |
1 Set |
||
|
Total Power |
55kw |
|
||||
|
Heating Power |
36kw |
|||||
