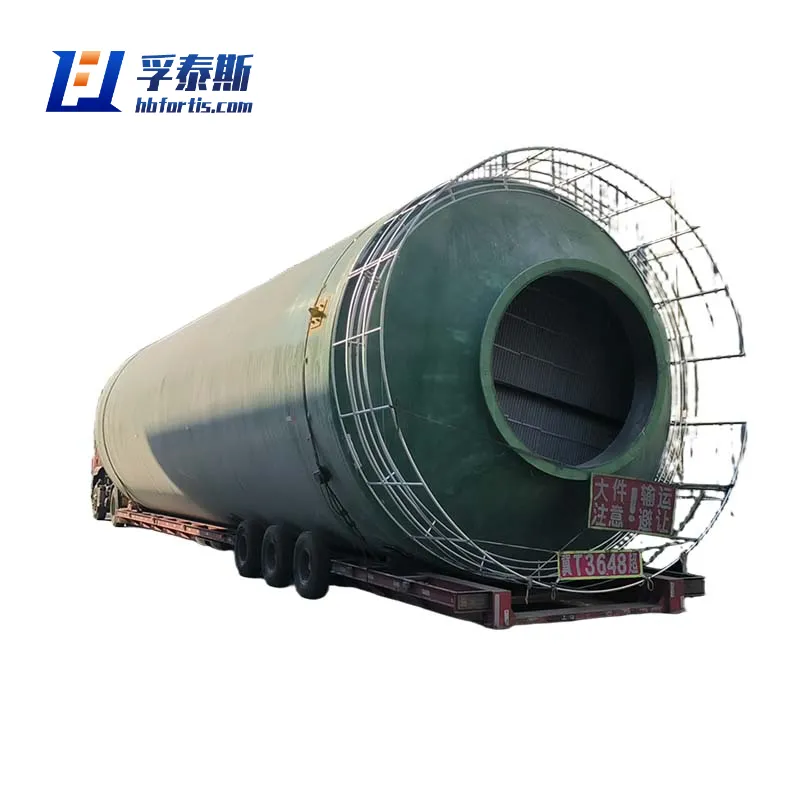

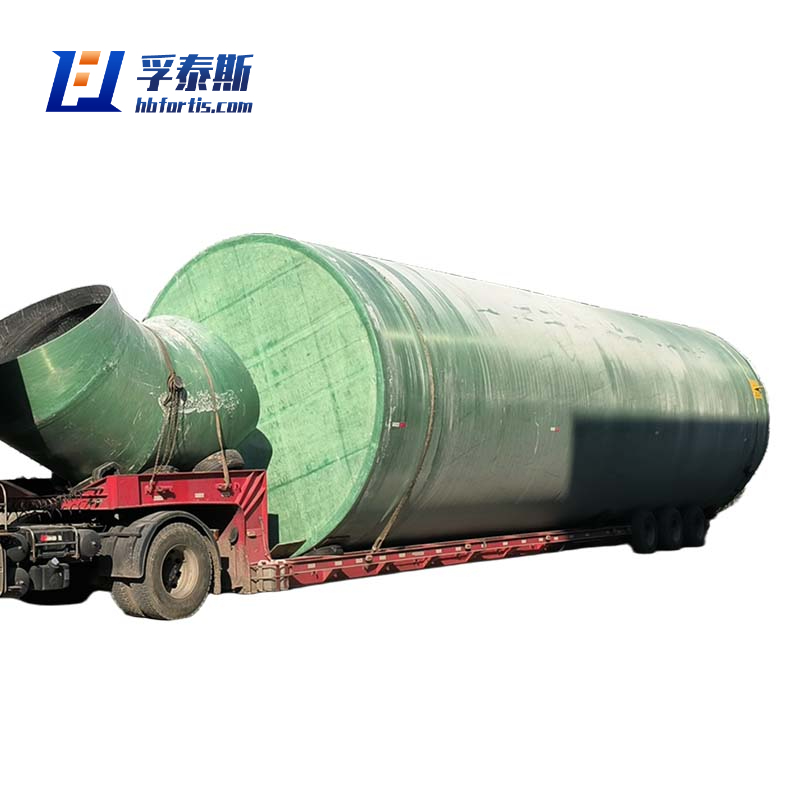

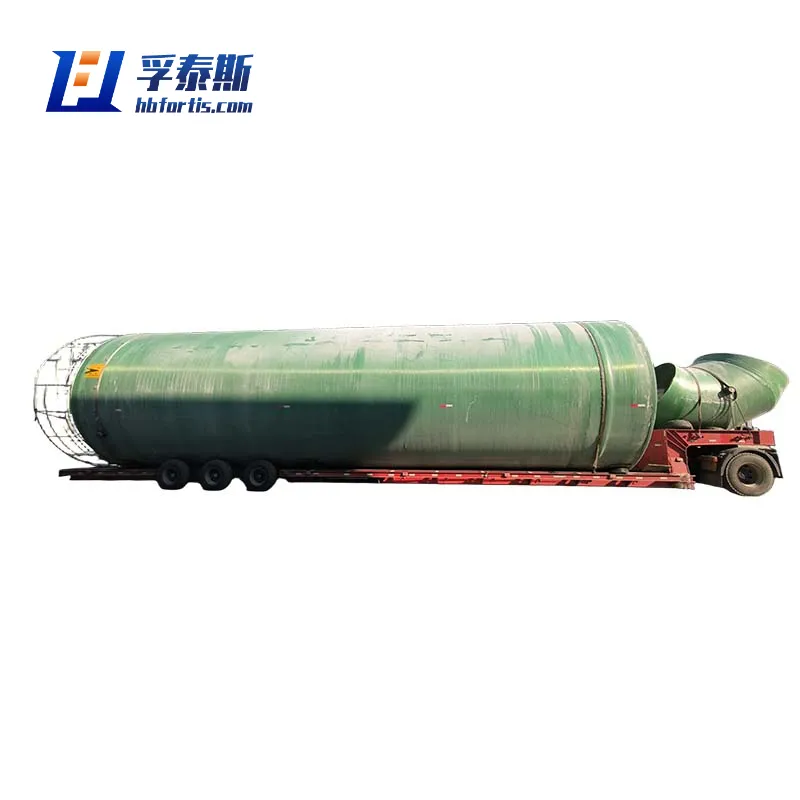

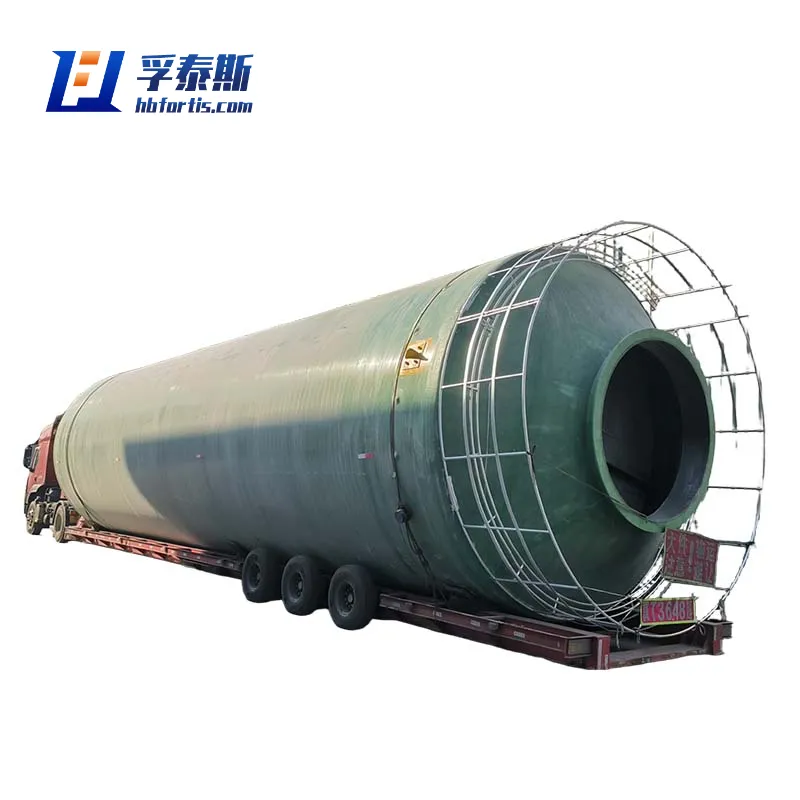

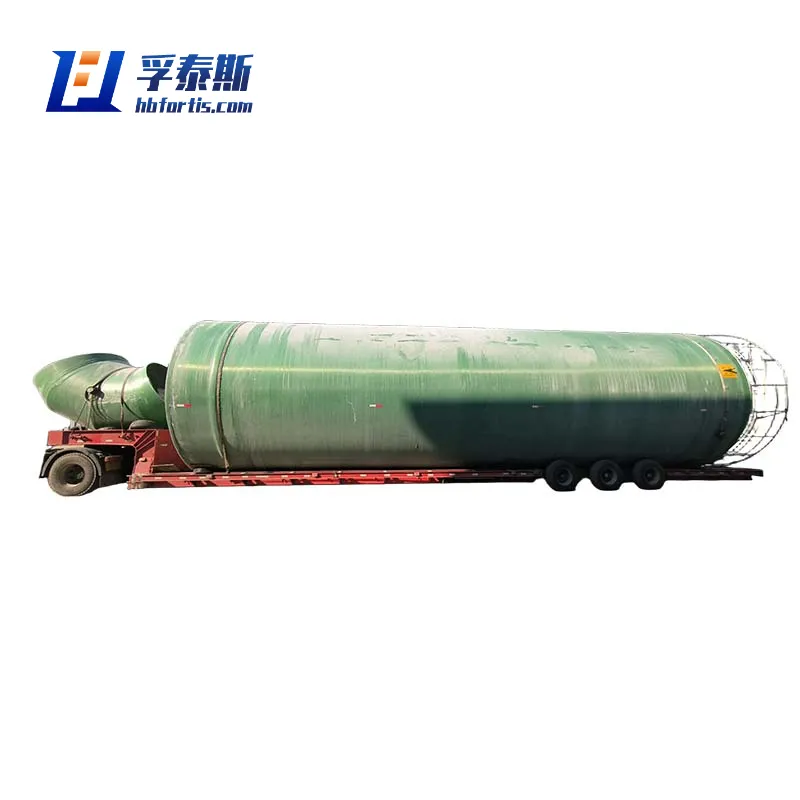

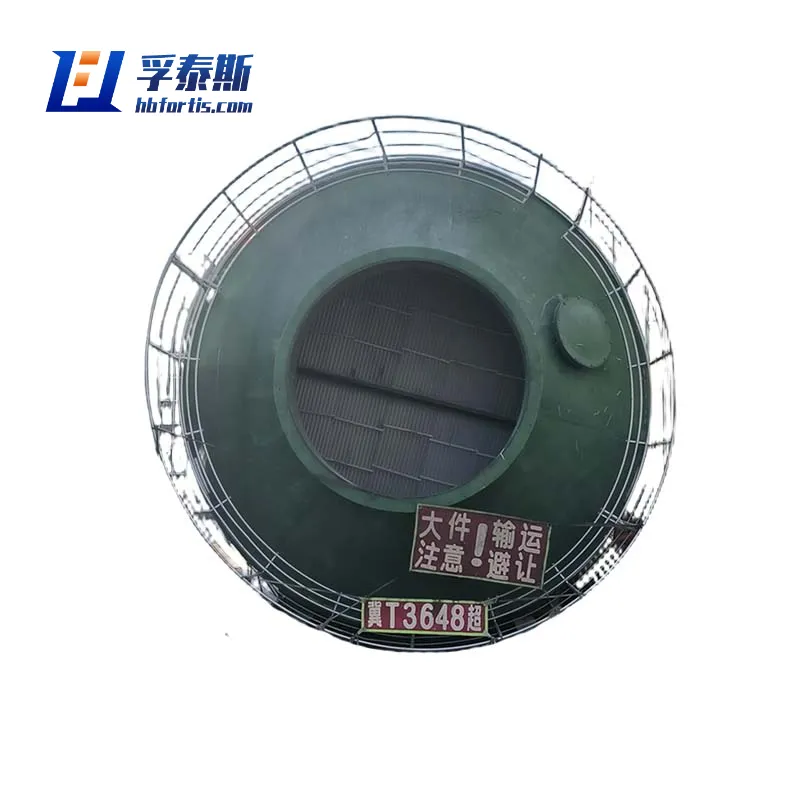

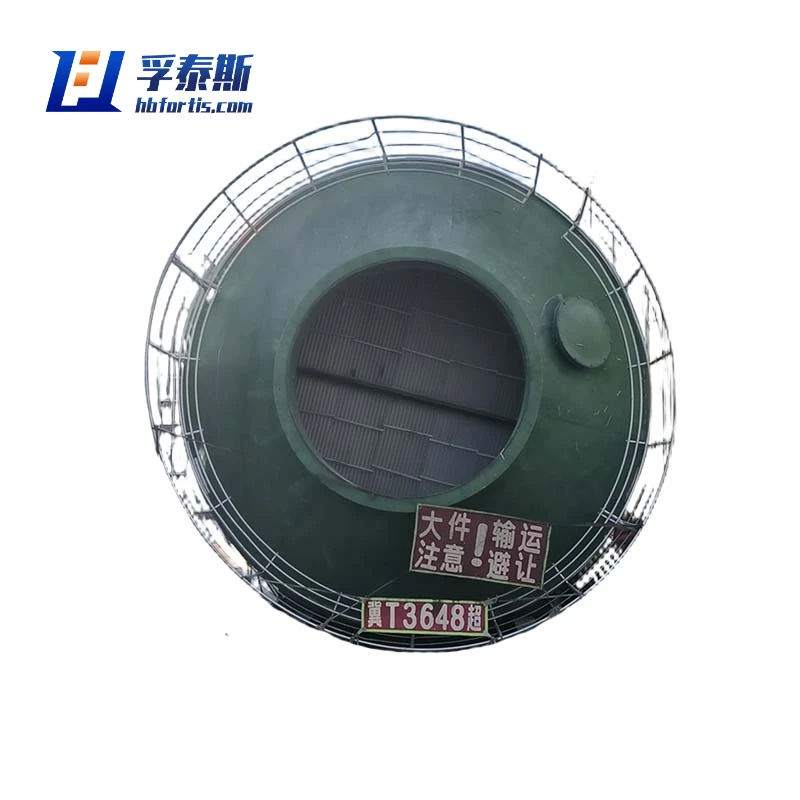

Fiberglass GFRP FRP Desulfurization Denitrification Scrubber Tower for Coal Fired Power Plant Exhaus

Share:

Main structure: tower body, spray system (nozzles + liquid distributor), packing layer (Pall rings / stepped rings / corrugated packing), air distribution plate, circulating water tank, fog remover, accompanying fan and PLC control system; supports segmental flange or complete winding molding, with modular expansion options available upon request.
Purification Process: The waste gas enters the tower from the bottom, is evenly distributed by a flow equalizing plate, and then flows upward. The spray system at the top of the tower atomizes and sprays customized absorption liquids (acid gas with alkaline liquid, alkaline gas with acidic liquid) to form a large-area liquid film in the packing layer. The gas and liquid come into full counter-current contact, and the pollutants are captured through neutralization reactions, dissolution, and interception. The purified gas is then dried through an anti-fog layer and discharged from the top of the tower. The absorption liquid is returned to the circulating water tank, where it can be reused or treated to meet standards before being discharged externally.
Typical efficiency: acid/alkaline waste gas removal rate of 90%–98%, dust removal rate of ≥95%, and sulfur dioxide removal efficiency of over 85%.

Hebei Fortis Technology Co., Ltd Product Brochure

Product Advantages

Superior corrosion resistance: The FRP material can withstand pH levels ranging from 1 to 14, strong acids, strong bases, and organic solvents. The anti-aging coating can adapt to environments from –30°C to 120°C, with no issues of metal corrosion. The lifespan can reach 15–20 years.
Lightweight and high strength: its density is only 1/4 that of steel. It is easy to transport and install, and the cost of foundation construction is low. Its mechanical strength meets requirements for both atmospheric pressure and low-pressure conditions, and it has excellent insulation properties with no electrochemical corrosion.
Low-resistance energy-saving: The inner walls are smooth, resulting in minimal system resistance and low fan energy consumption. The absorption liquid can be recycled, significantly reducing operating costs compared to processes like incineration and dry adsorption.
Customization flexibility: It can be designed according to the processing flow rate, pollutant concentration, the height of the spray and packing layers, and the formulation of chemicals to suit different operating conditions. It supports automatic pH/flow rate monitoring and remote control.
