Material: The primary material is SMC (Sheet Molding Compound) molded by compression molding. The reinforcing material is glass fiber, the base material is unsaturated polyester/epoxy modified resin, and additives for weather resistance, flame retardancy, and anti-aging are used. The surface is often colored red (due to its sensitivity to birds and reflective warning properties); it can be customized in yellow or green.

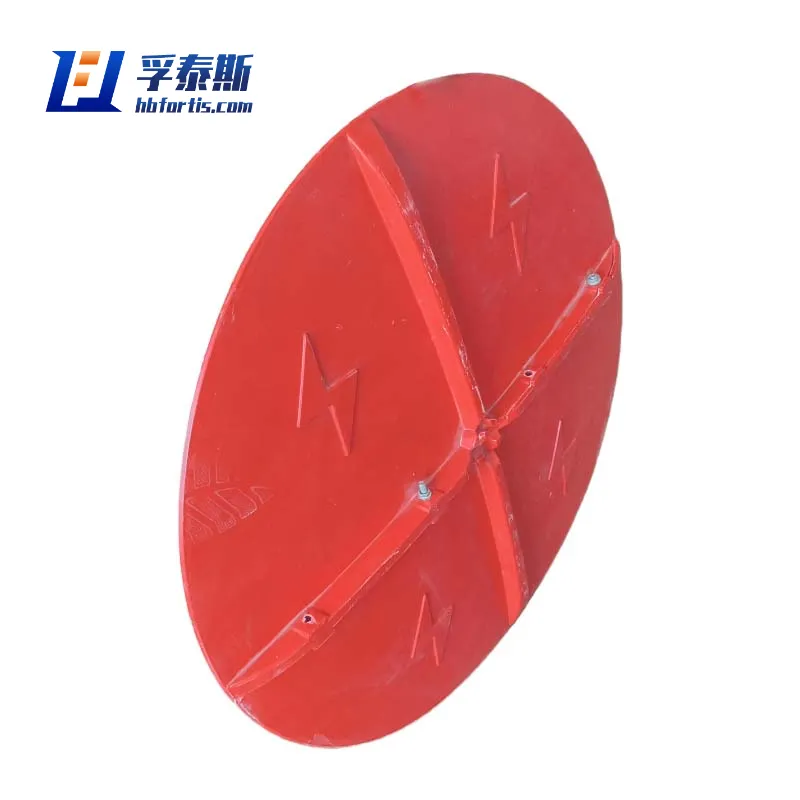

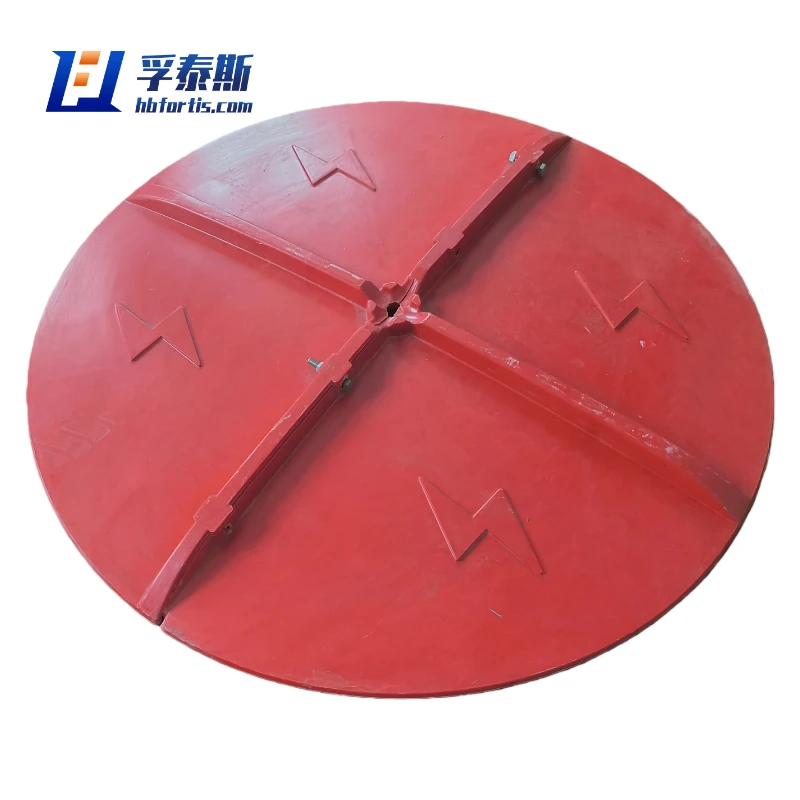

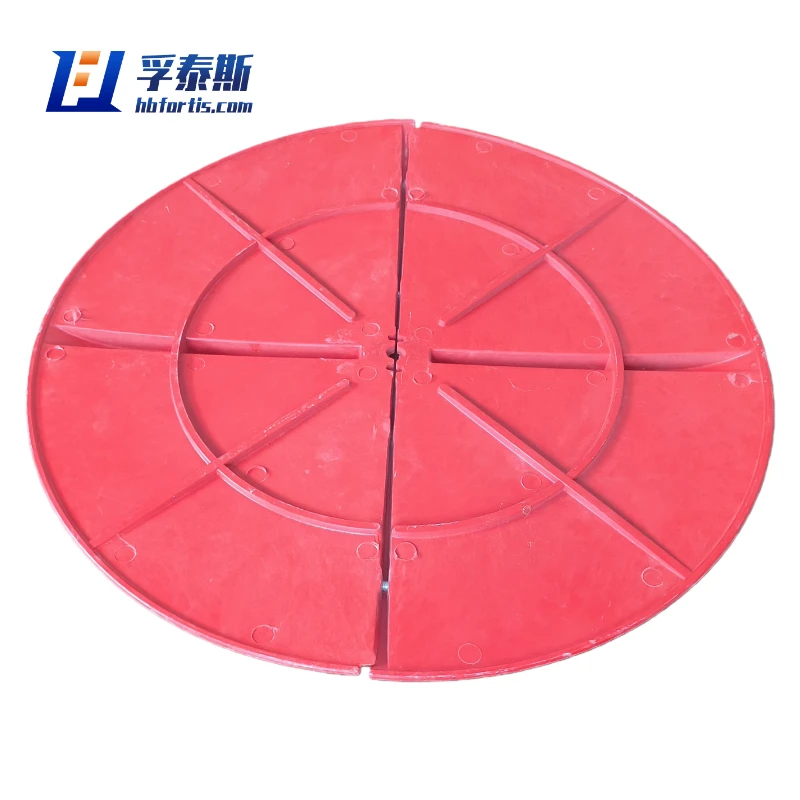

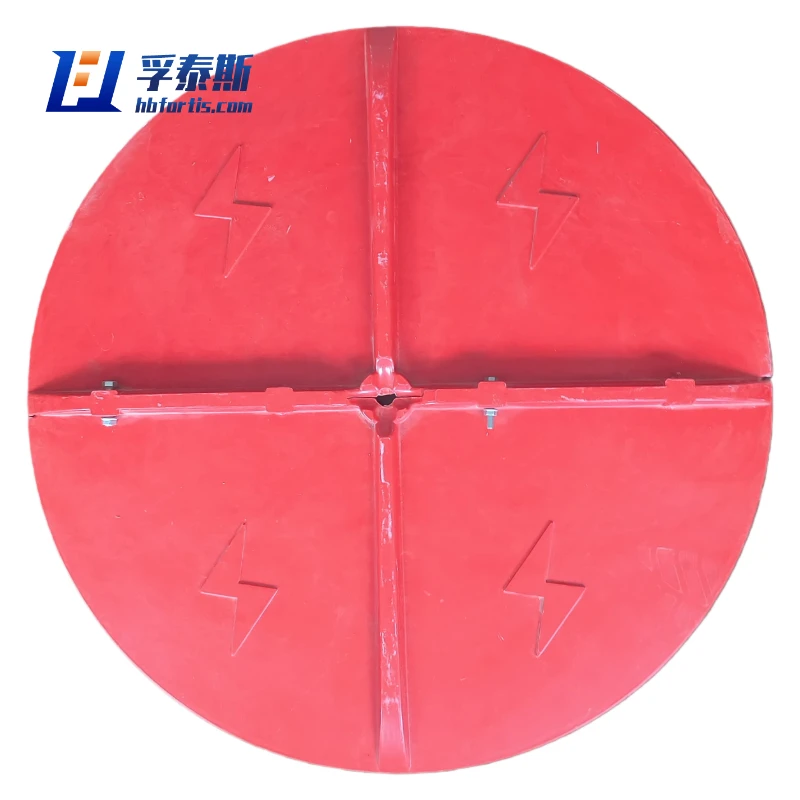

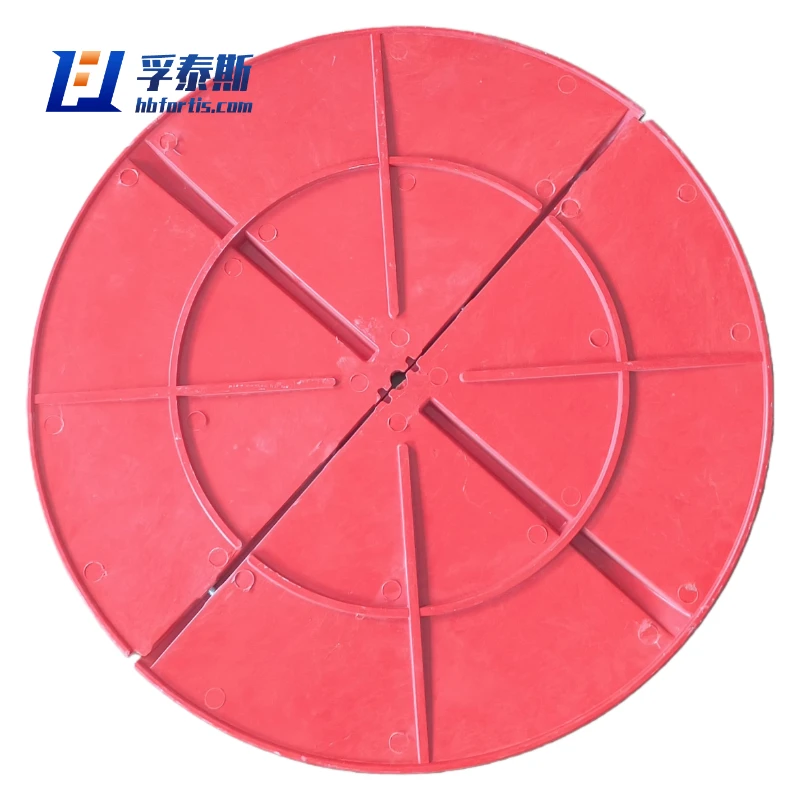

Structure: Separable docking type (two halves that snap together). The central hole diameter is compatible with insulator metal hang points, featuring specialized clips/bolts. Common specifications: φ620mm (35kV–220kV); additional sizes of φ800mm and φ1200mm are available for 10kV–35kV applications.
Manufacturing and Standards: Molded as a single unit, featuring high dimensional accuracy and seamless construction. Adheres to industry standards for electrical equipment, requiring testing for insulation, arc resistance, aging resistance, and bird droppings-induced flashovers. Typical lifespan: 15–20 years or more.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
Insulation + Bird Protection Duo-Effect: Exceptional electrical insulation to prevent interphase/ground short circuits, ice flash, and bird body/feather-related issues; the red casing repels birds and physically obstructs nesting and foreign object falls.
Lightweight, high-strength, and weather-resistant: with a density far lower than that of metal, it can be quickly installed in high-altitude environments; resistant to impact, UV radiation, acids, bases, salt fog, and maintains stability between –40°C and 80°C over an extended period, suitable for coastal, desert, and mountainous regions.
Maintenance-free + Easy installation: No need for frequent painting or maintenance. The articulated design, combined with specialized fasteners, eliminates the need for large equipment, and high-altitude work is efficient.
Low smoke, non-toxic: flame-retardant formulation; does not drip when exposed to open flames and has low smoke toxicity.
