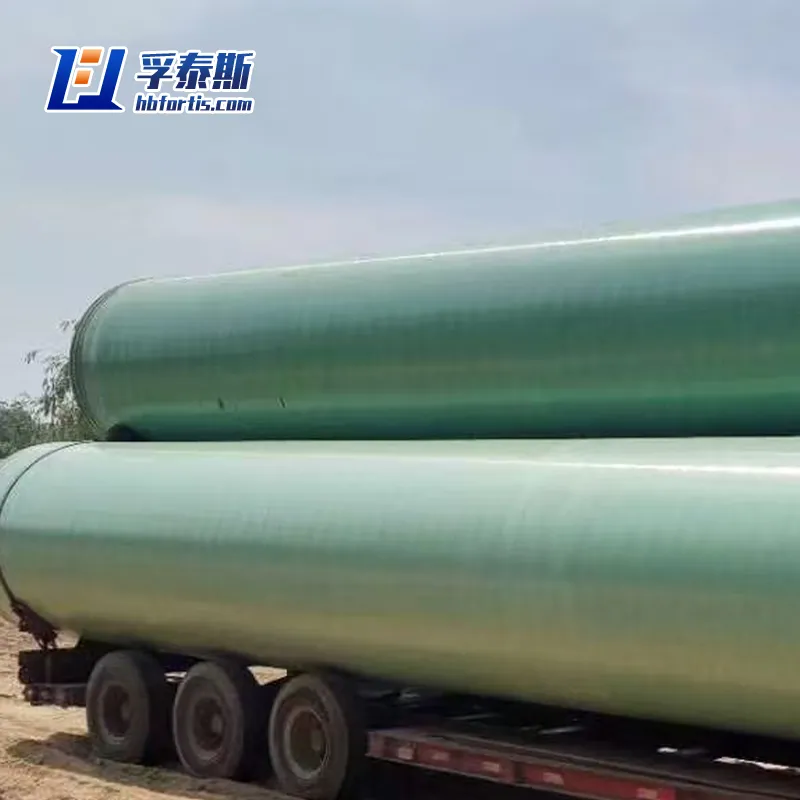

This fiberglass reinforced plastic (FRP) pipe is manufactured via resin and glass fiber winding/pultrusion technology, featuring core advantages of lightweight yet high strength, acid-alkali corrosion resistance, and low fluid resistance. With a density only 1/4 that of steel pipes, it is easy to install and requires no anti-corrosion coating, capable of withstanding harsh conveying environments such as sewage, chemical media, and seawater. Its smooth inner wall effectively reduces fluid transportation energy consumption and the risk of scaling and clogging. Widely used in chemical fluid transportation, municipal water supply and drainage, seawater desalination, sewage treatment and other fields, it supports customization of pipe diameter, pressure rating and length to meet diverse engineering requirements.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
The FRP pipe delivers a high-performance transportation solution that outperforms conventional pipelines in resisting corrosion, scaling, weight, and durability challenges. Its value lies not in initial cost savings, but in its extended lifespan, minimal maintenance requirements, and operational efficiency that drive lower lifecycle costs. This makes FRP piping the ideal choice for safe, reliable, and cost-effective operations in demanding industrial, municipal, and marine environments.
Application Scenarios

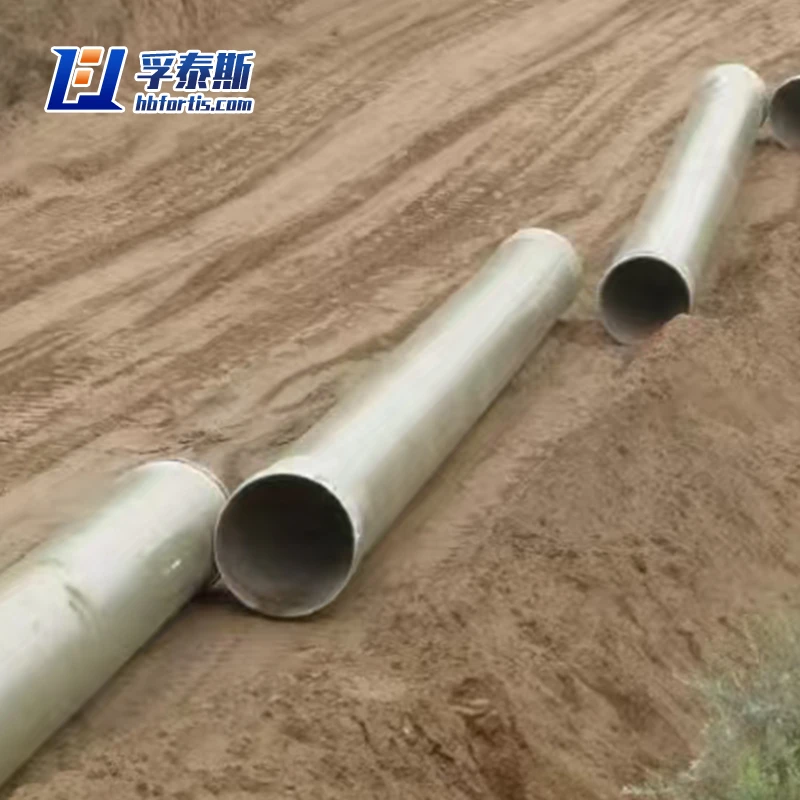

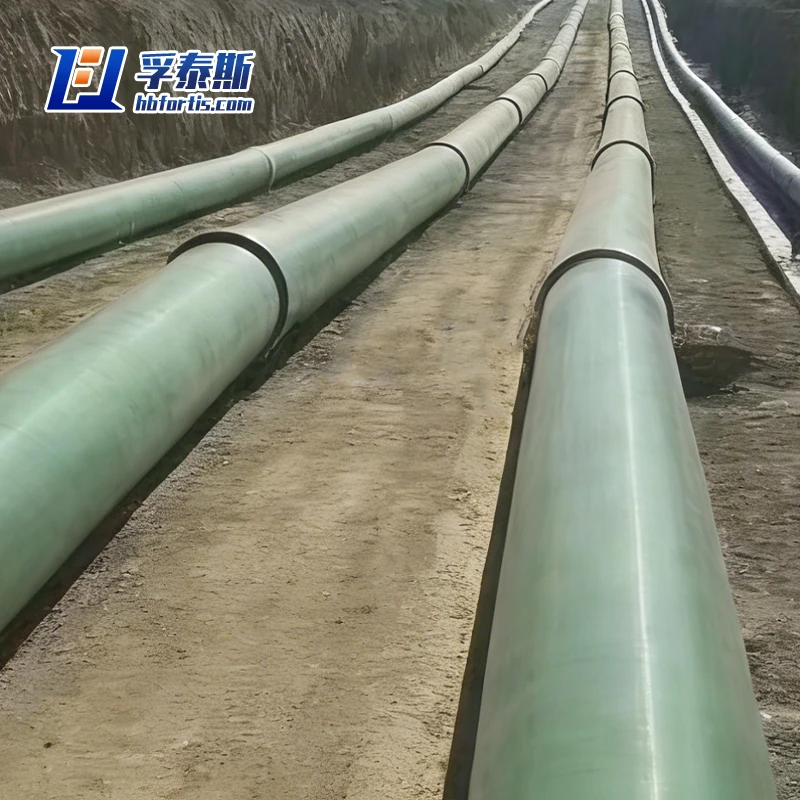

Water treatment and conveyance: Crude oil, brine, chemicals, process fluids, corrosive wastewater, Municipal water supply, sewage treatment, desalination plant, Circulating water cooling pipe.
Electric power, mining industry: The ash removal (FGD) system pipeline of the thermal power plant conveys abrasive and corrosive slurry. - Cable sheath. - Transporting tailings slurry, acid mine water and other media with dual effects of abrasion and corrosion.
Paper and food industry: Transport bleach, pulp, food grade medium, etc.
Parameter Specifications
|
Product |
FRP pipe |
||||
|
|
|||||
|
Model |
Inner.dia(mm) |
Length(mm) |
Channel Thickness(mm) |
||
|
P=0.6Mpa |
P=1.0Mpa |
P=1.6Mpa |
|||
|
FT-Pp10 |
10 |
1800 |
4.6 |
4.6 |
4.6 |
|
FT-Pp15 |
15 |
||||
|
FT-Pp20 |
20 |
||||
|
FT-Pp25 |
25 |
||||
|
FT-Pp32 |
32 |
||||
|
FT-Pp40 |
40 |
||||
|
FT-Pp50 |
50 |
6000 |
|||
|
FT-Pp65 |
65 |
||||
|
FT-Pp80 |
80 |
||||
|
FT-Pp100 |
100 |
5.9 |
|||
|
FT-Pp125 |
125 |
||||
|
FT-Pp150 |
150 |
5.9 |
|||
|
FT-Pp200 |
200 |
5.9 |
7.2 |
||
|
FT-Pp250 |
250 |
12000 |
8.5 |
||
|
FT-Pp300 |
300 |
7.2 |
9.8 |
||
|
FT-Pp350 |
350 |
8.5 |
11.1 |
||
|
FT-Pp400 |
400 |
12.4 |
|||
|
FT-Pp450 |
450 |
7.2 |
9.8 |
13.7 |
|
|
FT-Pp500 |
500 |
||||
|
FT-Pp600 |
600 |
8.5 |
12.4 |
15.0 |
|
|
FT-Pp700 |
700 |
9.8 |
13.7 |
20.2 |
|
|
FT-Pp800 |
800 |
15.0 |
22.8 |
||
|
FT-Pp900 |
900 |
11.1 |
16.3 |
25.4 |
|
|
FT-Pp1000 |
1000 |
12.4 |
17.3 |
28.0 |
|
|
FT-Pp1200 |
1200 |
13.7 |
|
|
|
|
FT-Pp1400 |
1400 |
16.3 |
|
|
|
|
FT-Pp1500 |
1500 |
|
|
||
|
FT-Pp1600 |
1600 |
17.6 |
|
|
|
|
FT-Pp1800 |
1800 |
18.9 |
|
|
|
|
FT-Pp2100 |
2100 |
22.8 |
|
|
|
|
FT-Pp2400 |
2400 |
25.4 |
|
|
|
|
FT-Pp2600 |
2600 |
26.7 |
|
|
|
|
FT-Pp3000 |
3000 |
30.6 |
|
|
|
|
FT-Pp3300 |
3300 |
33.2 |
|
|
|
|
FT-Pp3600 |
3600 |
35.8 |
|
|
|
|
FT-Pp4000 |
4000 |
39.7 |
|
|
|
