Fiberglass GFRP FRP Molded cover plate Anti-Skid Grating Cover for Tanks Trenches

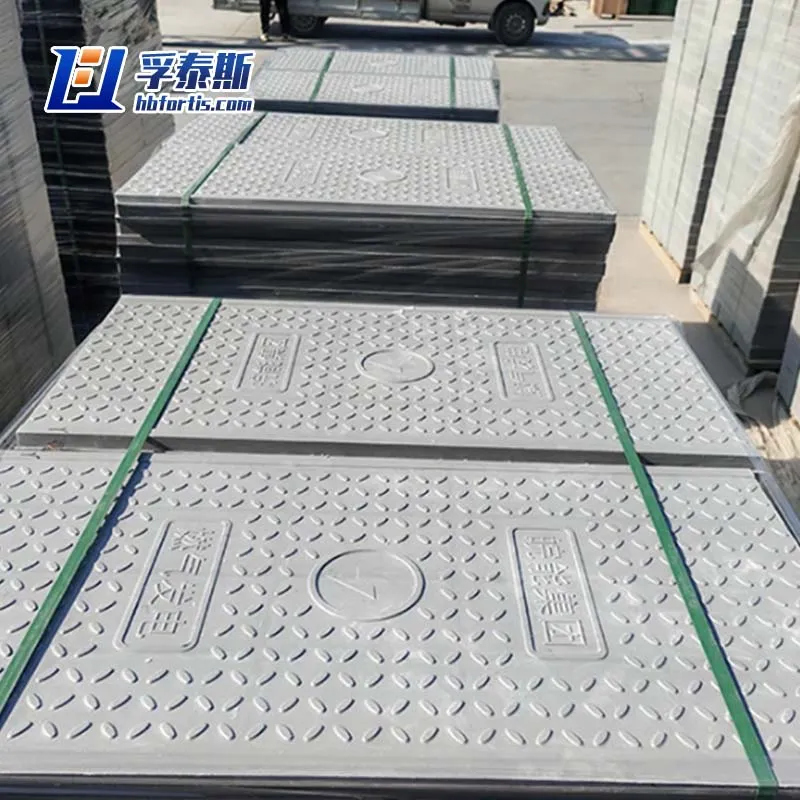

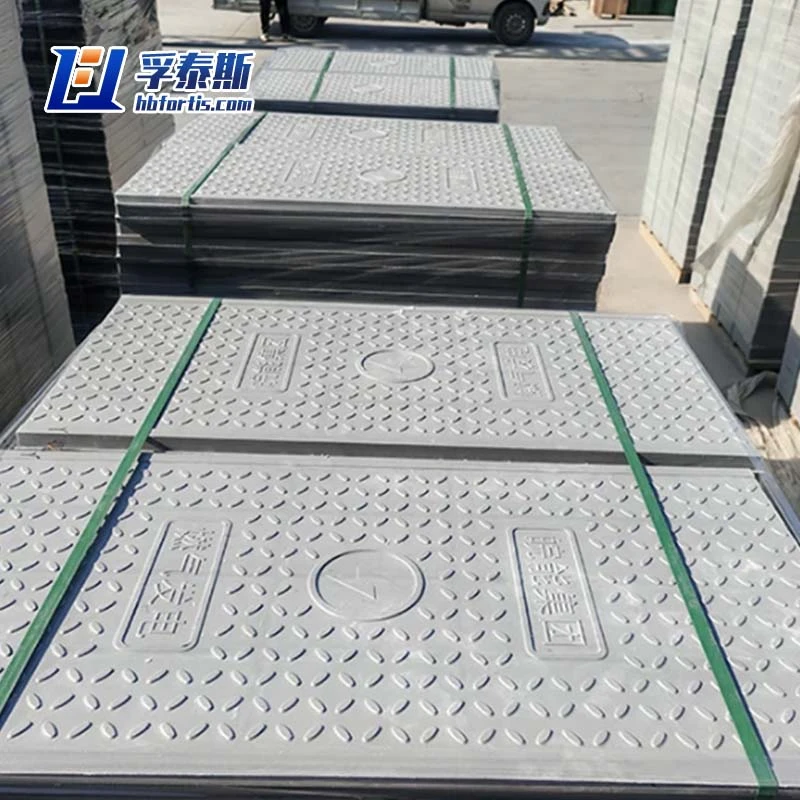

A molded FRP cover plate is a compression-molded fiberglass composite lid designed to safely cover industrial openings such as chemical trenches, wastewater basins, underground vaults, storage tank manholes, and electrical junction pits. Unlike steel or concrete covers, FRP molded cover plates are non-corrosive, 75% lighter, and feature an integral anti-slip walking surface. Our manufacturing process uses thermoset resin (ISO, vinyl ester, or polyester) with continuous glass fiber mats and a pressure-molded outer layer for consistent thickness and edge strength. These covers meet or exceed load class A15 to F900 per EN 124 standards. They never require painting, rust removal, or cathodic protection, making them the lowest-lifecycle-cost solution for municipal and industrial infrastructure.We manufacture high-load FRP molded cover plates for chemical plants, water treatment facilities, and industrial flooring systems. Each cover plate is compression-molded under 1,000+ tons of pressure to eliminate voids and ensure uniform thickness across the entire panel. The standard anti-slip grit top reduces fall risks, while the smooth underside prevents debris accumulation. Available in 12 standard sizes from 12″×12″ to 48″×48″. All covers include stainless steel fasteners and lifting keys upon request. Free corrosion testing samples provided for qualified buyers.

Hebei Fortis Technology Co., Ltd Product Brochure

Download

Inquire Now Next Product

Product Advantages Parameter Specifications

Product Advantages

One-piece molded construction – No seams, no weak points. Uniform strength and higher impact resistance than hand-layup covers.

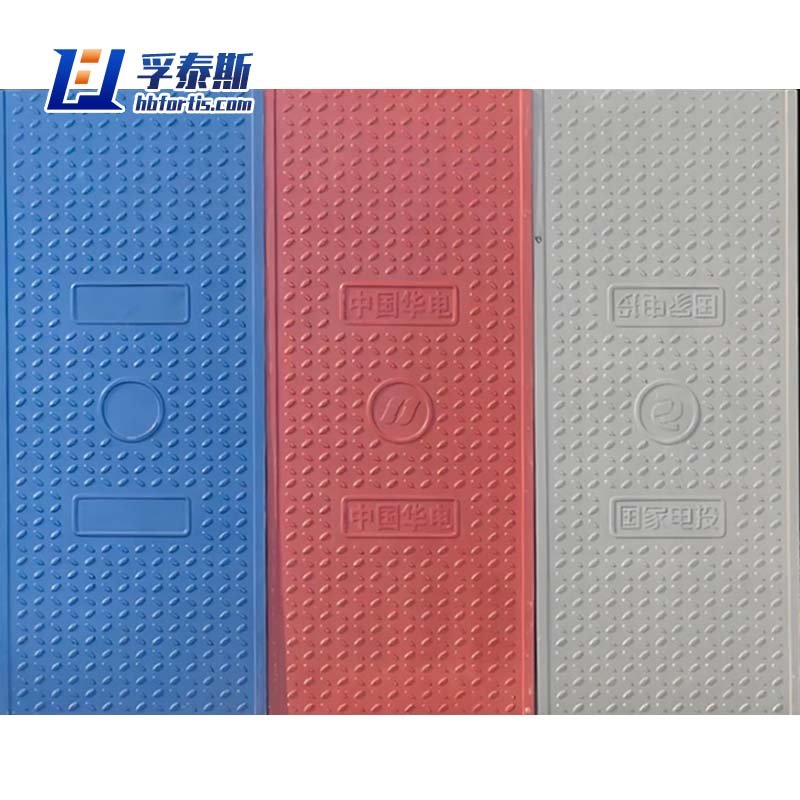

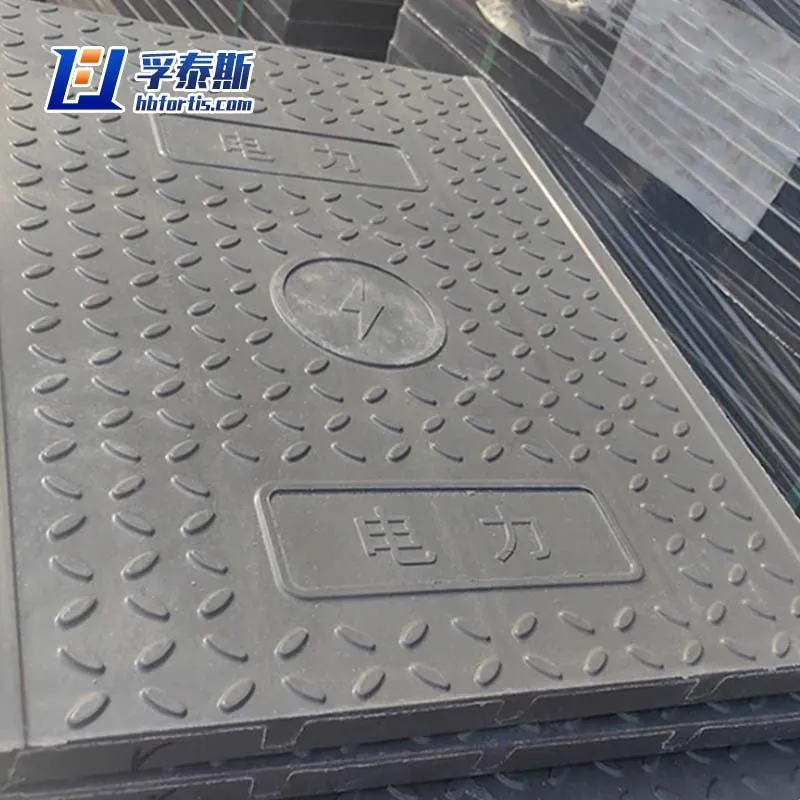

Anti-slip surface – Molded-in grit texture or diamond pattern; safe for wet, oily, or icy walking conditions.
Corrosion-proof & UV-resistant – Withstands acids, chlorine, seawater, and sunlight. No rust, no peeling paint, no degradation for years.
Load-rated options – Available in pedestrian, light vehicle, or heavy forklift classes (up to 5 tons wheel load).
Easy installation & maintenance – Lightweight (1/4 weight of steel), no lifting equipment needed. Snap-fit or bolt-down designs available.
Non-conductive & non-sparking – Safe for electrical rooms, fuel storage, chemical plants, and explosive environments.

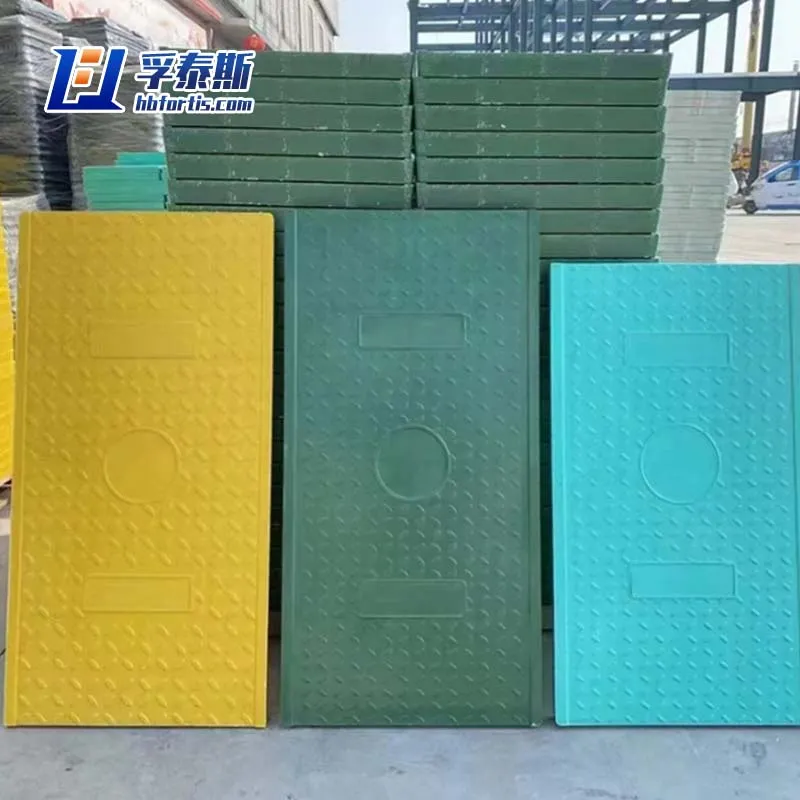

Customizable – Any shape (round, square, rectangle), any color (yellow, green, gray, blue), and cutouts for pipes or vents.

Parameter Specifications

Product	FRP manhole cover

Model	Type	manhole cover		manhole cover base				bearing capacity (tonne)
		A	B	D	C	F	E
FT-M600L	Light	φ600	35	760	660	20	100	5
FT-M600N	Normal	φ600	35	760	660	20	100	15
FT-M600H	Heavy	φ600	35	810	660	20	110	30
FT-M600UH	Super-Heavy	φ600	35	810	660	20	100	30+
FT-M700L	Light	φ700	38	810	750	20	100	5
FT-M700N	Normal	φ700	38	810	750	20	100	15
FT-M700H	Heavy	φ700	38	920	750	20	120	30
FT-M700UH	Super-Heavy	φ700	38	920	750	20	100	30+
FT-M800L	Light	φ800	38	860	850	20	110	5
FT-M800N	Normal	φ800	38	860	850	20	110	15
FT-M800H	Heavy	φ800	38	930	850	20	120	30
FT-M800UH	Super-Heavy	φ800	38	930	850	20	120	30+

Fiberglass GFRP FRP Molded cover plate Anti-Skid Grating Cover for Tanks Trenches
