We are a China-based factory-direct manufacturer and exporter of FRP utility poles, serving power distribution, telecommunications, coastal and renewable energy projects worldwide. Our pultruded fiberglass poles are lightweight, corrosion-resistant, non-conductive and engineered to withstand harsh environments where traditional wood, steel or concrete poles fail. As an experienced FRP pole supplier, we offer customizable lengths, diameters, wall thicknesses and colors, with IEC, ASTM and ISO-compliant production. Buyers sourcing utility poles from China choose us for stable quality, competitive factory pricing, flexible MOQs and reliable export logistics. Contact us for samples, specifications or a tailored quotation.Our company specializes in the manufacture and export of FRP utility poles from China, with a focus on factory-direct supply for overseas utilities, EPC contractors and telecom integrators. We produce fiberglass-reinforced polymer poles that resist corrosion, UV degradation and electrical conductivity, making them suitable for power lines, communication networks, coastal installations and solar farm infrastructure. Every pole is pultruded under controlled process parameters, and we support custom tooling, private labeling and mixed-container shipments. If you are looking for a dependable FRP utility pole exporter and long-term supplier, our team is ready to support your project from specification to delivery.
Hebei Fortis Technology Co., Ltd Product Brochure
Product Advantages
Resistance to UV and Weathering
High-quality FRP utility poles are formulated with UV stabilizers and protective surface veils that resist sun damage, fading and surface degradation. They perform reliably under extreme temperatures, from intense desert heat to freezing winter conditions, without becoming brittle or losing structural integrity. This weather resistance ensures consistent performance across diverse climates and reduces the need for painting, coating or other cosmetic upkeep.
Low Maintenance and Long Service Life
Once installed, FRP utility poles require minimal maintenance. They do not need chemical treatment against rot or insects, nor do they need repainting or rust protection. Their resistance to pests, moisture and corrosion means utilities and telecom operators can avoid the recurring costs associated with wooden pole replacement or steel pole coating. Over a projected service life that often exceeds 30 to 50 years, the total cost of ownership is substantially lower than that of conventional alternatives.
Design Flexibility and Customization
FRP utility poles can be manufactured in a wide range of lengths, diameters, wall thicknesses and colors to meet specific project requirements. They can be produced with integrated features such as climbing steps, cable holes, crossarm mounts and identification markings. This flexibility allows engineers to specify poles that match exact load ratings, span requirements and installation conditions, rather than adapting designs to limited standard sizes. Custom tooling and private labeling are also available for OEM and distributor needs.
Application Scenarios
Solar power plants and renewable energy sites often use FRP utility poles for panel array supports, inverter station connections and grid tie-in lines. The poles are non-conductive, UV-resistant and unaffected by the temperature fluctuations typical of large open installations. Their lightweight nature also reduces foundation requirements and installation costs, making them an efficient solution for utility-scale solar farms, especially in remote or environmentally sensitive locations.
Along railways, highways and toll roads, FRP utility poles support signaling systems, lighting, cameras, communication equipment and emergency power lines. Their resistance to vibration, weather and corrosion keeps them stable in high-traffic environments, while their non-conductive properties improve safety for maintenance crews working near electrical systems. Transportation authorities also value their low maintenance profile, which minimizes traffic disruption during inspection or repair work.

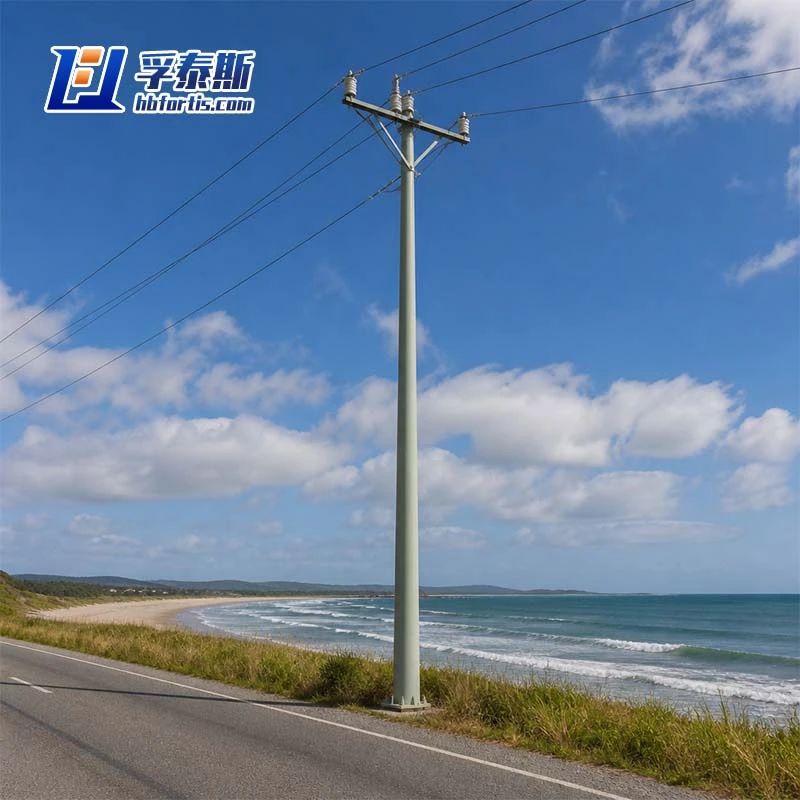

In coastal regions, salt spray and high humidity rapidly degrade wooden and steel poles. FRP utility poles are inherently resistant to saltwater corrosion, making them a preferred choice for seaside towns, ports, marinas, offshore platforms and island electrification projects. They do not rust, rot or attract marine borers, and they maintain their mechanical properties even after years of exposure to aggressive marine conditions, which significantly reduces replacement cycles and maintenance costs.
Parameter Specifications
|
Product |
FRP Utility pole / telephone pole |
|||
|
Category |
Item |
Performance Requirements |
||
|
Mechanical Properties |
Tensile Strength |
≥500 MPa |
||
|
Flexural Strength |
≥500 MPa |
|||
|
Compressive Strength |
≥300 MPa |
|||
|
Physical Properties |
Flame Resistance |
V-1/0 Grade |
||
|
Chemical Resistance |
Acid Resistance (80°C, 5wt% HCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
||
|
Alkali Resistance (80°C, 10wt% NaOH solution, 7 days) |
No powdering, no cracks, flexural modulus retention rate ≥50% |
|||
|
Salt Resistance (80°C, 3wt% NaCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Aging Resistance |
Artificial Climate Aging (Method A-1, irradiance, cycle 1, 300h) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
||
|
Hygrothermal Aging (60°C, 93%RH, 12h~25°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Constant Humidity and Heat Aging (60°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
High-Temperature Resistance (300°C~400°C) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
|||
|
Electrical Properties |
Surface Resistivity |
≥1.0 × 10^10 Ω |
||
|
Volume Resistivity |
≥1.0 × 10^10 Ω•m |
|||
|
Density |
solid |
≤0.25 g/cm³ |
||
|
hollow |
≤2 g/cm³ |
|||
|
Model |
Length (m) |
Top Diameter (mm) |
Standard load (P) |
Standard bending moment (kN.m) |
|
Z Ø190×8×I×FH |
8 |
190 |
3 |
19.35 |
|
Z Ø190×9×I×FH |
9 |
190 |
3 |
21.75 |
|
Z Ø190×10×I×FH |
10 |
190 |
3 |
24.15 |
|
Z Ø190×12×I×FH |
12 |
190 |
3 |
29.25 |
|
Z Ø190×15×I×FH |
15 |
190 |
3 |
36.75 |
|
Z Ø190×18×I×FH |
18 |
190 |
3 |
/ |
|
Z Ø190×8×K×FH |
8 |
190 |
4 |
25.80 |
|
Z Ø190×9×K×FH |
9 |
190 |
4 |
29.00 |
|
Z Ø190×10×K×FH |
10 |
190 |
4 |
32.20 |
|
Z Ø190×12×K×FH |
12 |
190 |
4 |
39.00 |
|
Z Ø190×15×K×FH |
15 |
190 |
4 |
49.00 |
|
Z Ø190×18×K×FH |
18 |
190 |
4 |
61.00 |
|
Z Ø190×8×M×FH |
8 |
190 |
6 |
38.70 |
|
Z Ø190×9×M×FH |
9 |
190 |
6 |
43.50 |
|
Z Ø190×10×M×FH |
10 |
190 |
6 |
48.30 |
|
Z Ø190×12×M×FH |
12 |
190 |
6 |
58.50 |
|
Z Ø190×15×M×FH |
15 |
190 |
6 |
73.50 |
|
Z Ø190×18×M×FH |
18 |
190 |
6 |
91.50 |
|
Z Ø230×8×M×FH |
8 |
230 |
6 |
38.70 |
|
Z Ø230×9×M×FH |
9 |
230 |
6 |
43.50 |
|
Z Ø230×10×M×FH |
10 |
230 |
6 |
48.30 |
|
Z Ø230×12×M×FH |
12 |
230 |
6 |
58.50 |
|
Z Ø230×15×M×FH |
15 |
230 |
6 |
73.50 |
|
Z Ø230×18×M×FH |
18 |
230 |
6 |
91.50 |
