Electric Power System Contactor for Three-Phase Induction Motor Control F-C1 to China Exporter

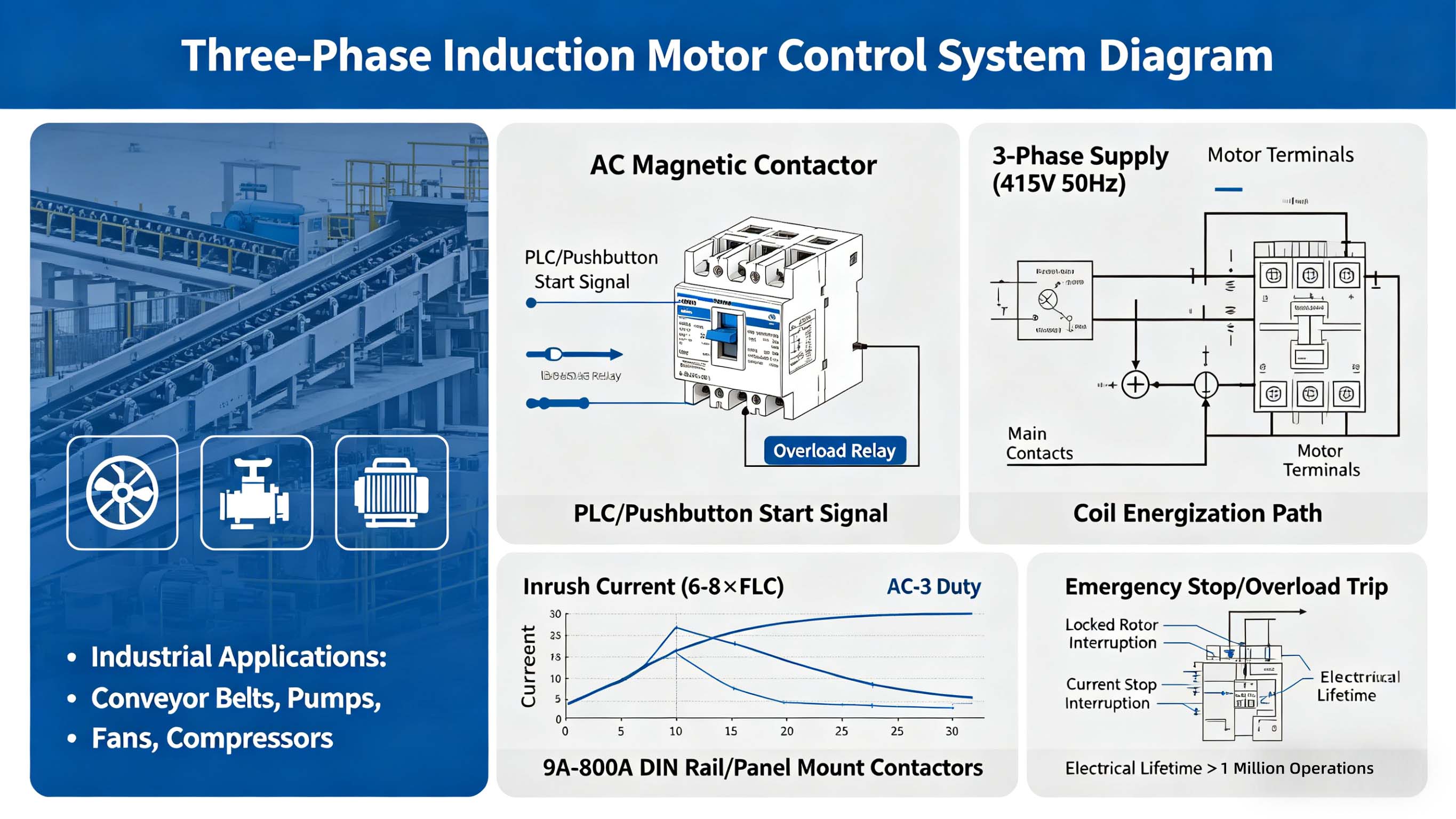

 Three-Phase Induction Motor Control

In industrial conveyor belts, pumps, fans, or compressors, the AC magnetic contactor is the most critical component of a motor starter assembly paired with an overload relay. When a PLC or pushbutton sends a start signal, the contactor's coil energizes, pulling in the main contacts to connect the 3-phase supply (e.g., 415V 50Hz) to the motor terminals. During the motor starting phase (AC-3 duty), the contactor must withstand inrush currents of 6 to 8 times the full load current (FLC) without welding its contacts. Our 9A to 800A DIN rail or panel mount contactors handle these high inrush surges reliably, with electrical lifetimes exceeding one million operations. They safely interrupt locked rotor currents during emergency stops or overload trips, providing years of maintenance-free service in demanding factory environments.

 Lighting & Resistive Load Control

Large commercial buildings, stadiums, and parking garages often switch high-intensity discharge (HID) lamps, LED arrays, or electric heaters through modular contactors. Unlike motor loads, lighting circuits require AC-1 rated contactors where the inrush to steady-state ratio is lower (approximately 1.5× steady current). For banks of LED drivers with high capacitive inrush, our 4-pole contactors (up to 100A breaking capacity) allow switching neutral lines separately, preventing neutral arcing that could damage dimming systems. Wall-mounted or DIN rail housing with manual override levers enables maintenance technicians to force-close contacts even when coil power is off, a critical feature for emergency lighting tests. Some installations use bistable (latching) contactors to reduce control circuit standby power consumption across hundreds of lighting zones.

Capacitor Bank Power Factor Correction

For power factor correction panels at commercial or industrial sites, a specialized AC contactor with early-make auxiliary contacts switches capacitor banks. Standard contactors would be destroyed by high inrush currents (up to 100× steady state) during capacitor energization. Our PF-correction contactors incorporate a set of resistor-connected early-make auxiliaries that pre-charge the capacitor through limiting resistors before the main contacts close, reducing inrush to safe levels. Upon opening, auxiliary contacts break after the main contacts, ensuring no sustained arcing across capacitors. This design extends contact life to over 300,000 operations at 50 kVAr per step, improving overall power factor from 0.7 to 0.95 while reducing utility penalty charges. All models include discharge resistors to drain stored capacitor voltage to 50V within one minute, protecting personnel during panel maintenance.

HVAC & Refrigeration Compressors

Rooftop air conditioning units, chillers, and refrigeration rack systems use hermetically sealed HVAC contactors specially designed for compressor loads. These hermetic contactors, often rated at 40A to 100A at 600V AC-3 duty, incorporate extra-long mechanical life (over 2 million operations) to match the 15-year operating life of commercial compressors. The coil's low inrush (under 10 VA before pickup) allows direct control from building automation system (BAS) relay outputs without intermediate power relays. We also offer definite purpose contactors that feature compact housings, quick-connect terminals, and single-pole or double-pole configurations for smaller refrigeration circuits. Unlike general-purpose contactors, these devices are built with heavy-duty silver-tungsten contacts that resist pitting caused by refrigerant-induced back EMF spikes common in low-ambient starting conditions.
