Heavy-Duty FRP Drainage Channel Factory Direct | Airport & Port Export Supplier

As a China-based factory-direct exporter and manufacturer, our FRP drainage channels are not commodity gutters—they are engineered infrastructure solutions for high-traffic logistics hubs, seaports, and aviation aprons where impact resistance, chemical inertness, and rapid stormwater evacuation are non-negotiable. Unlike trading agents, we control every step from pultrusion formulation to CNC trimming, enabling strict adherence to EN 1433 load classes and customized profiles for each export project. Our competitive edge lies in blending structural durability with lightweight modularity, reducing installation costs by 30% while delivering 20-year service life under saline or acidic runoff. Backed by in-house R&D and a dedicated export team, we provide end-to-end support—from hydraulic capacity calculations to containerized shipping solutions—ensuring global clients receive factory-fresh products with zero middleman markup.

Hebei Fortis Technology Co., Ltd Product Brochure

Download

Inquire Now Next Product

Product Advantages Application Scenarios Parameter Specifications

Product Advantages

Unmatched Corrosion & Chemical Resistance
Unlike steel or cast iron channels that rust and spall under constant exposure to de-icing salts, seawater, or acidic industrial runoff, our FRP drainage channels are inherently inert. The vinyl ester or isophthalic resin matrix creates a molecular barrier that rejects hydrolysis and oxidation. This means zero protective coatings, zero sacrificial anodes, and zero degradation in aggressive environments—from fertilizer plants to marine terminals—delivering a drainage lifespan that outlasts metal alternatives by 3 to 5 times without structural weakening.

Superior Strength-to-Weight Ratio with Heavy-Duty Load Capacity
Our pultruded FRP channels combine high-fiber-content reinforcement (up to 75%) with a tailored U-shaped or V-shaped ribbed wall design. The result: a channel that weighs only one-quarter of equivalent cast iron yet confidently meets or exceeds EN 1433 Class D400 and even F900 impact specifications. This lightweight nature drastically reduces crane dependency, allows faster manual handling on congested job sites, and lowers shipping costs—while still supporting 40-ton forklifts, aircraft tow trucks, and fully laden container trailers with zero deflection or joint failure.

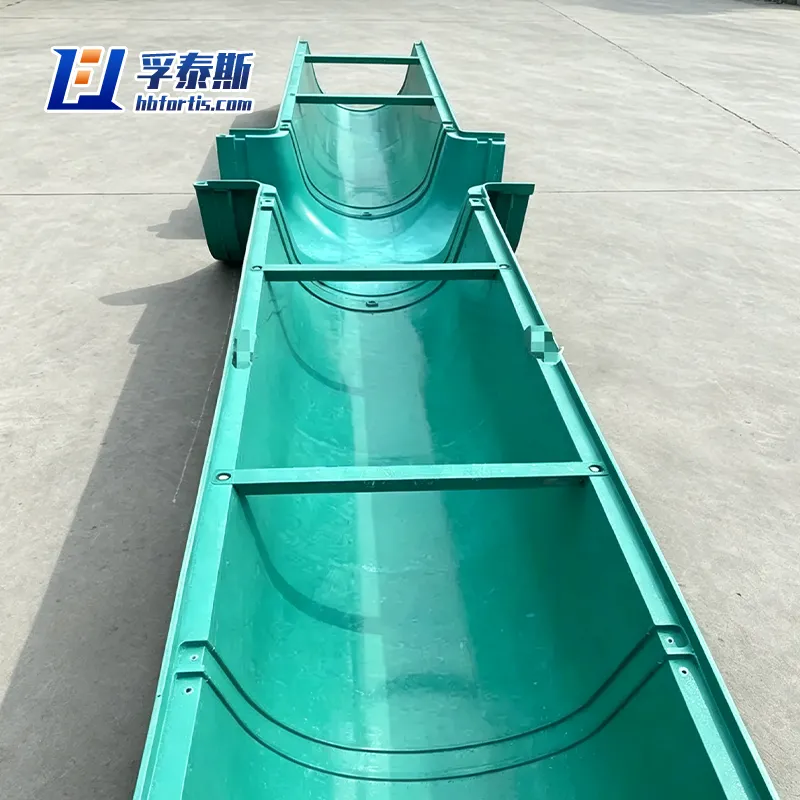

Hydraulically Optimized Self-Cleaning Profile
Our channel’s internal geometry is not an afterthought—it is computational-fluid-dynamics (CFD) refined. The smooth, non-porous FRP surface offers a Manning’s roughness coefficient as low as 0.009, which is significantly slicker than concrete or polymer concrete. Combined with a slightly inclined bottom taper, this design accelerates flow velocity to above 1.0 m/s at low volumes, effectively flushing debris, gravel, and silt downstream. This self-scouring action reduces manual cleaning frequency by over 60%, slashing long-term maintenance budgets for port yards and highway toll plazas.

Application Scenarios

Industrial plant: chemical plant, oil platform, pharmaceutical plant, electroplating workshop, battery manufacturing plant and other corrosive environment.

Sewage treatment plant and municipal engineering: drainage around aeration tank and sedimentation tank, as well as drainage of sidewalks and plazas.

Food and beverage industry: slaughterhouses, breweries, dairy plants and other places that require high hygiene standards and acid and alkali resistant detergents.

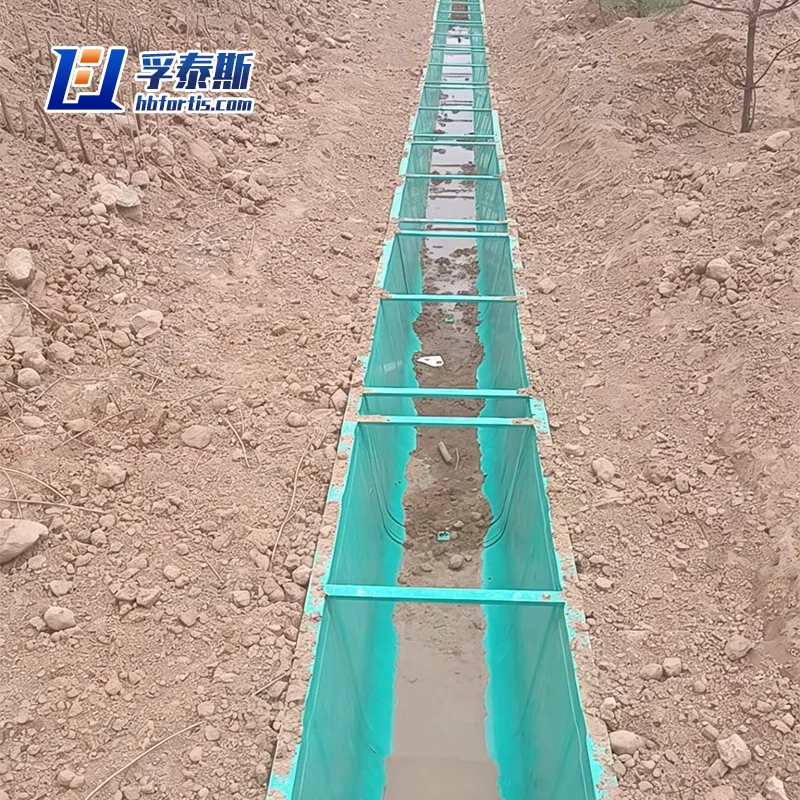

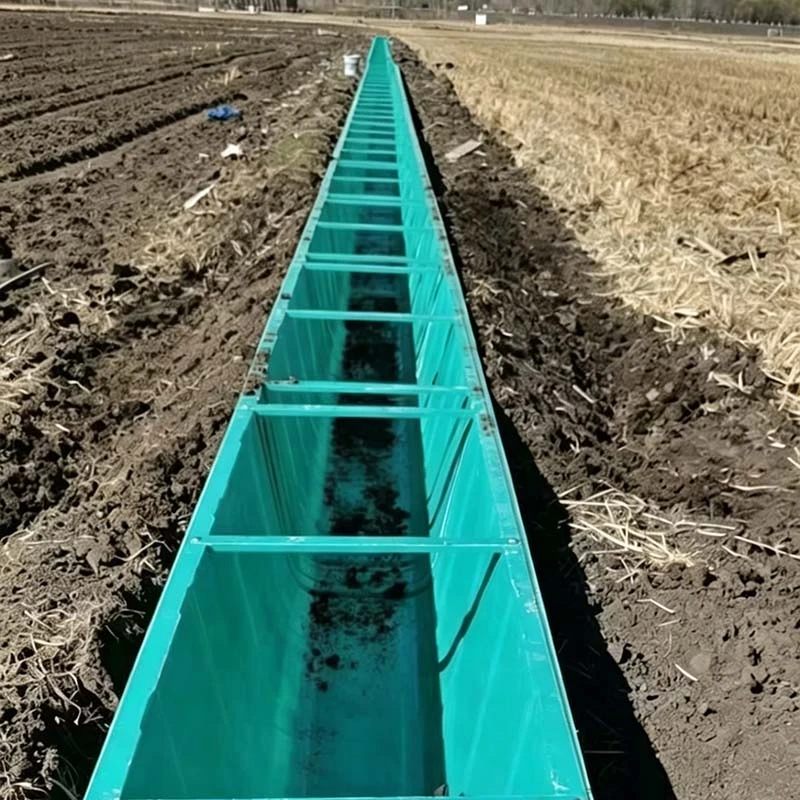

High standard farmland construction: as branch canal, bucket canal and agricultural canal, realize the precise water transmission from water source to field.

Water-saving irrigation project: as the main water supply pipeline, it is compatible with drip irrigation and sprinkler irrigation system to ensure that water source can be delivered to each area efficiently and with low loss.

Greenhouse and greenhouse: as the main indoor water channel, moisture-resistant and corrosion-resistant.

Landscape irrigation: water supply for large green areas such as parks and golf courses, which is beautiful and durable.

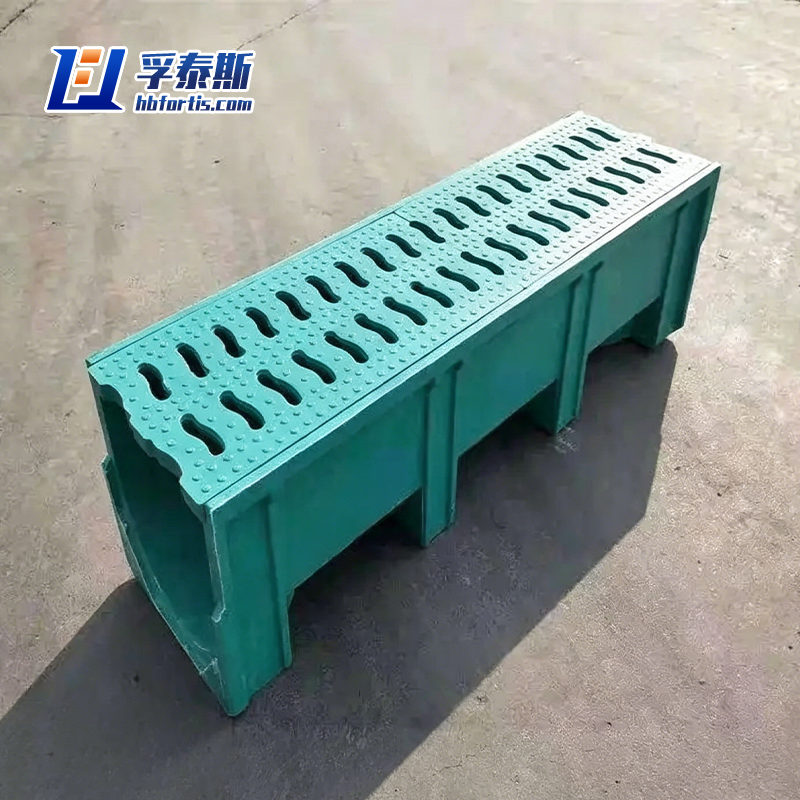

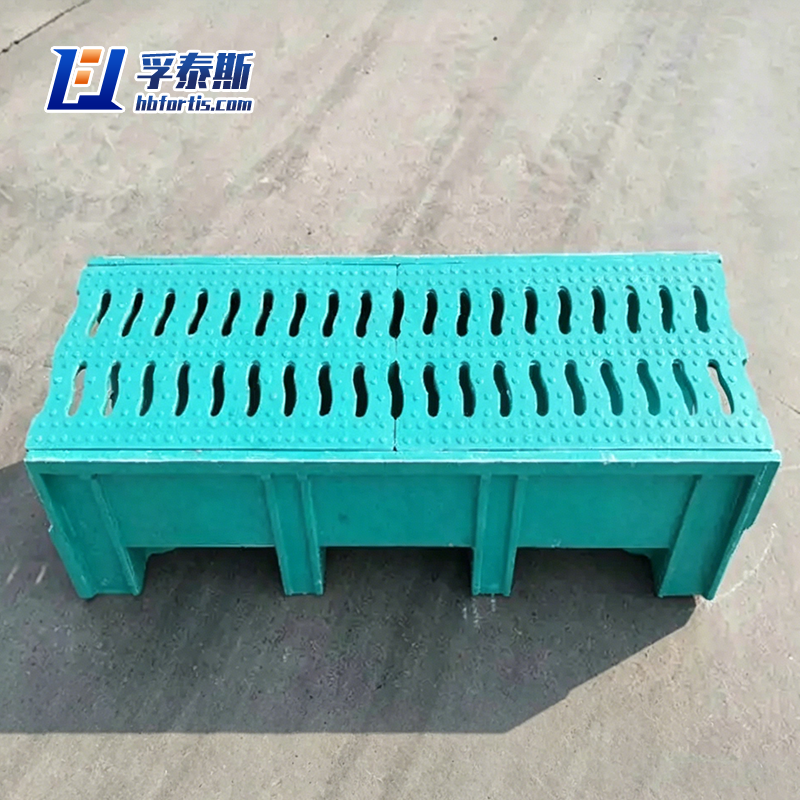

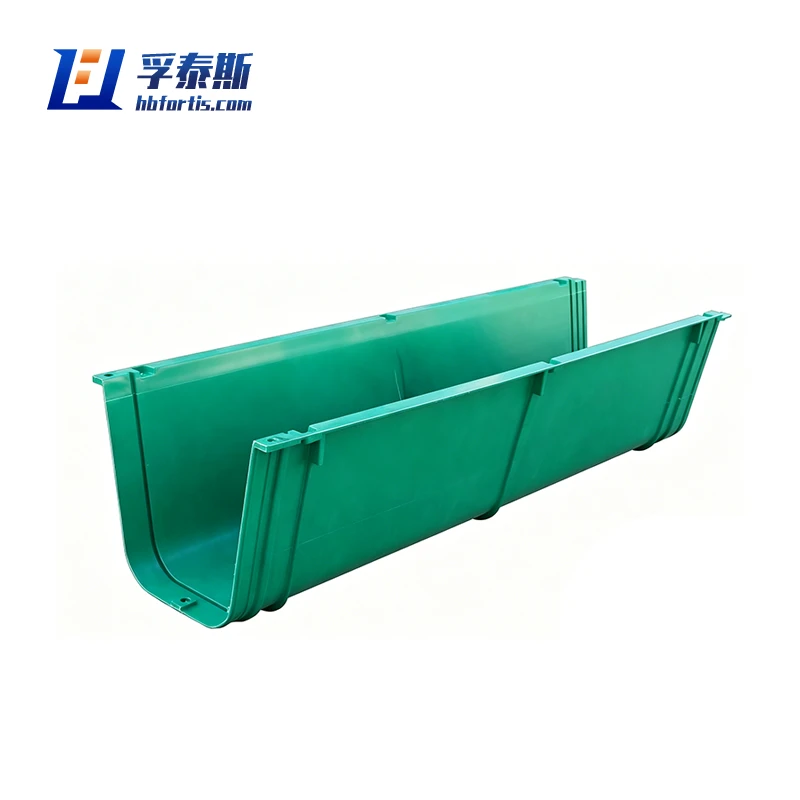

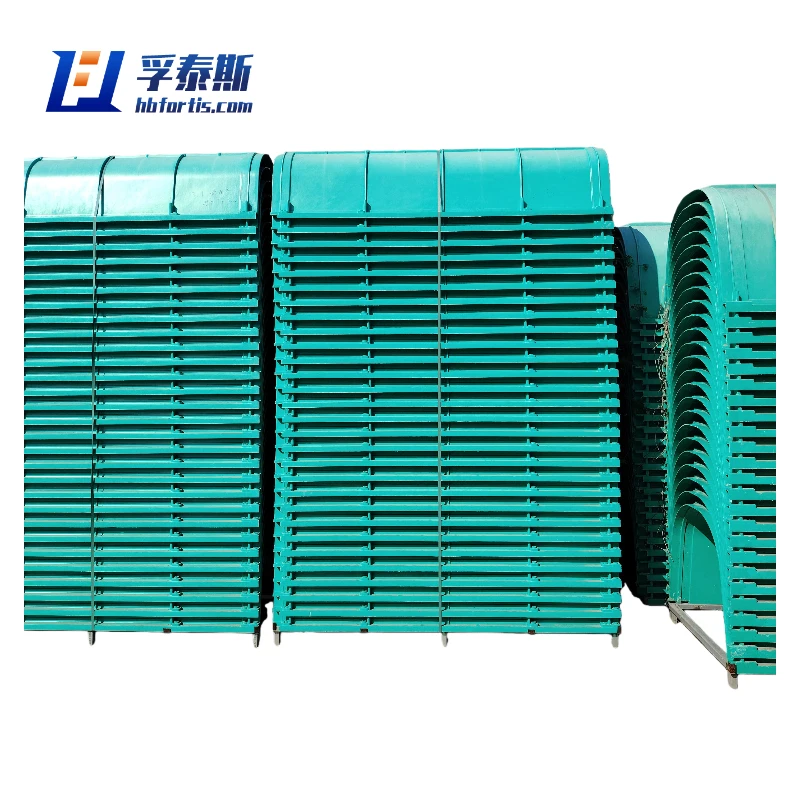

Fiberglass GFRP FRP Drain Channel

Parameter Specifications

Product	FRP drainage channel / FRP irrigation channel

Model	Dimension(mm)	Height(mm)	Length(mm)
FT-DC11	115×85	115×85	1000

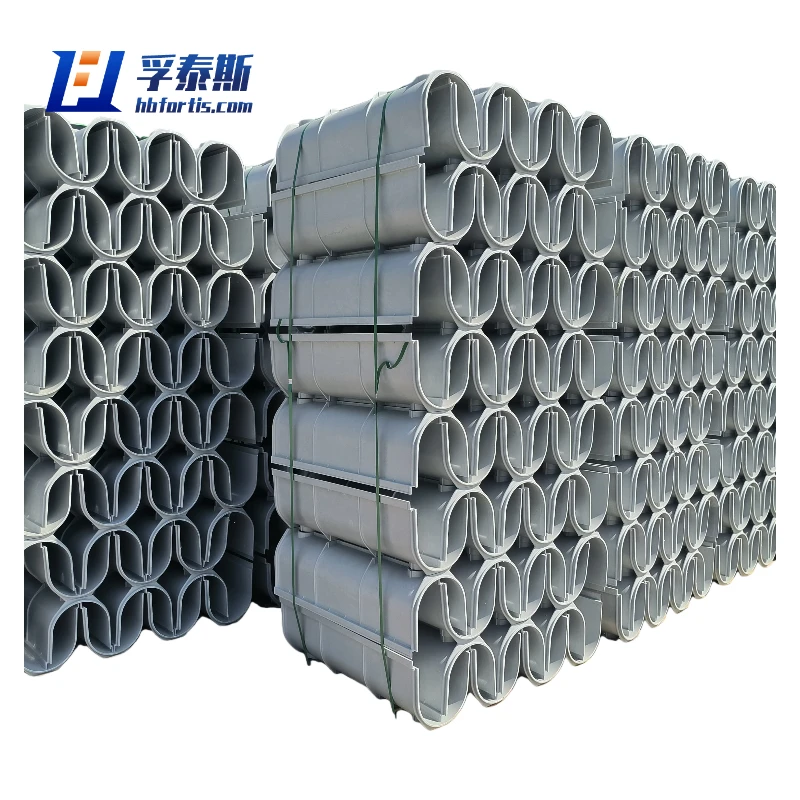

FT-DC16	160×132	150×114	1000
FT-DC21a	210×170	200×164	1000
FT-DC21b	210×165	300×270	1000
FT-DC21c	210×170	200×164	1000
FT-DC21d	210×165	300×290	1000
FT-DC26a	260×220	250×220	1000
FT-DC26b	260×220	250×220	1000
FT-DC31a	310×270	300×264	1000
FT-DC31b	310×270	300×264	1000
FT-DC41	410×355	400×357	1000
FT-DC51	516×454.5	530×485	1000
FT-DC501	500×400	315	1000
FT-DC503	500×400	215	3000
