FRP Cooling Tower

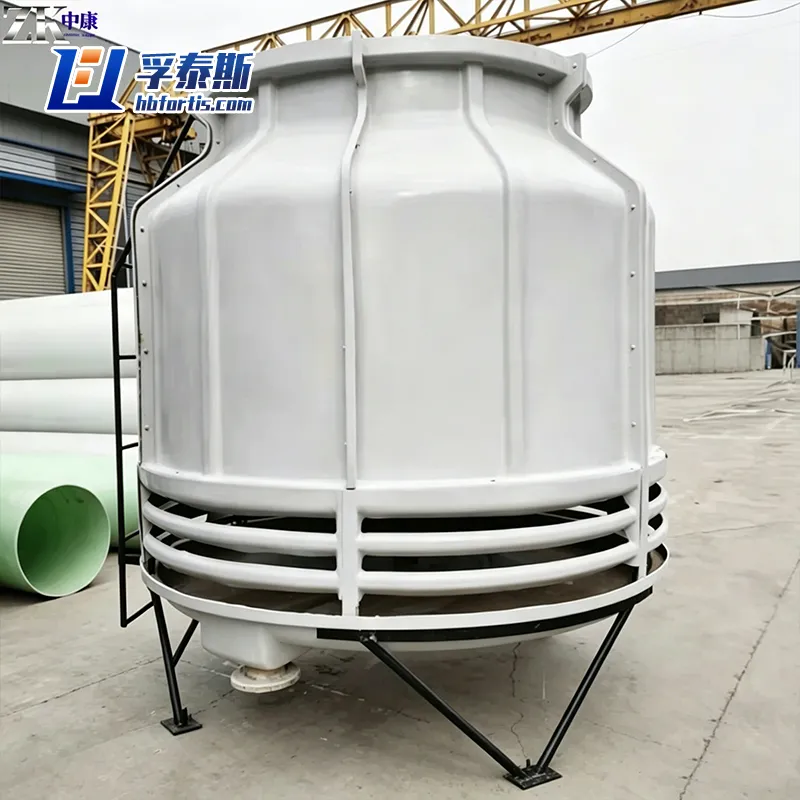

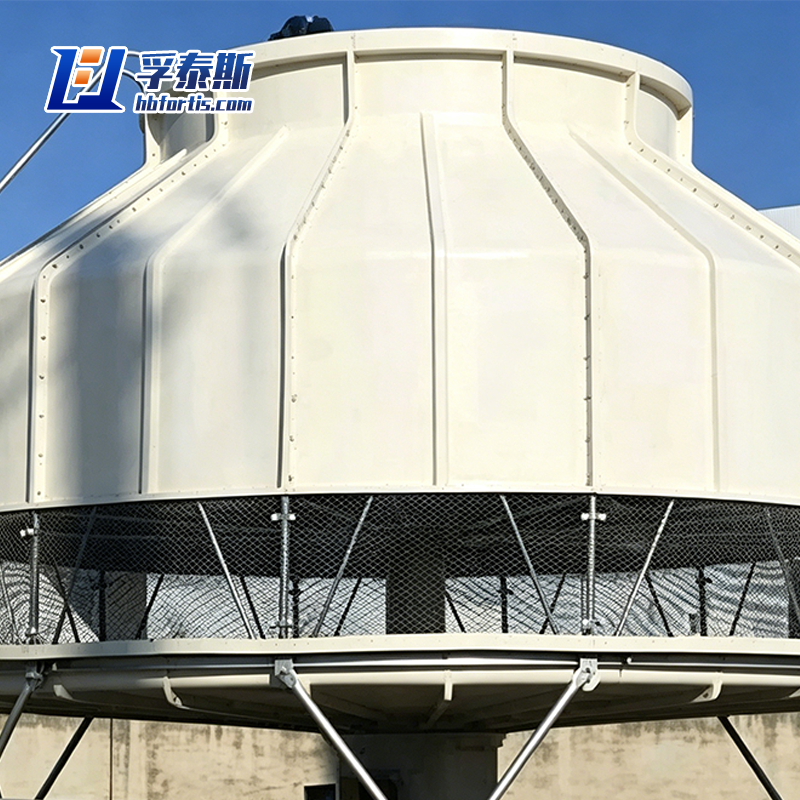

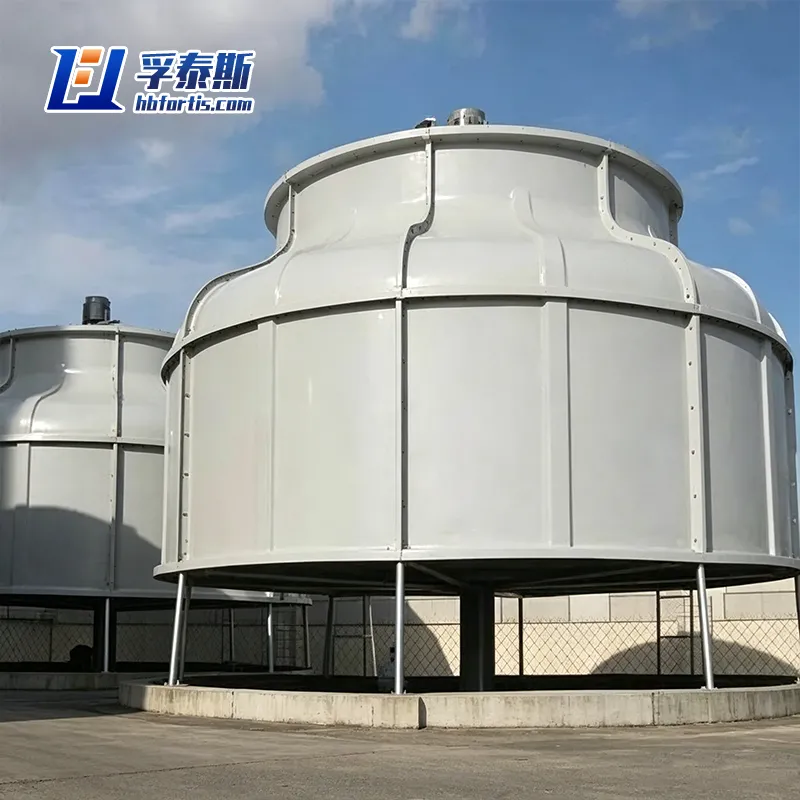

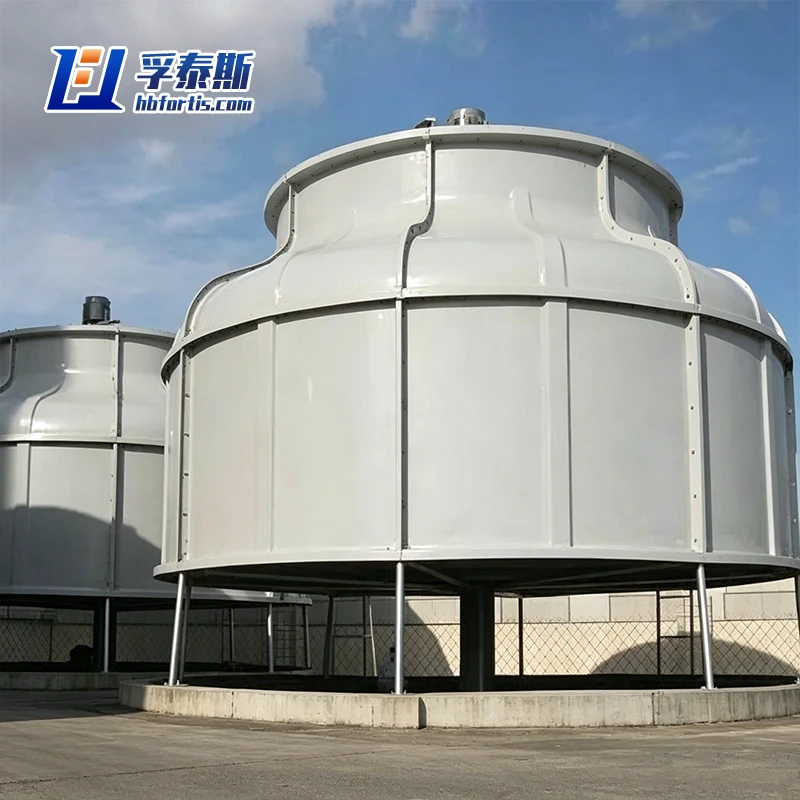

Tropical-Ready Counterflow FRP Cooling Tower | Exporter for Middle East & SE Asia DBNL3J-20

Share:

Our low-noise water-collecting counterflow FRP cooling tower is purpose-built for HVAC contractors and plant engineers who demand strict noise compliance and long-term water conservation. With a compact footprint and modular fill design, it delivers 15–25°C temperature drops at variable flow rates, while the integrated drift eliminators keep water loss under 0.001%. As an ISO-certified Chinese manufacturer, we offer end-to-end support—from thermal performance simulation to customized voltage motors (380V/415V/460V)—and ship globally with rapid-response after-sales technical assistance. Request your performance curve today to benchmark against your existing cooling system.

Hebei Fortis Technology Co., Ltd Product Brochure

DBNL3J-20

Product Advantages

FRP Structural Durability – Corrosion-Resistant, UV-Stabilized, and Lightweight
The casing and basin are hand-laid or spray-up FRP using isophthalic resin with a UV-inhibited gelcoat, tested for 3,000-hour salt spray resistance (ASTM B117). Unlike metal towers that rust or require annual repainting, our FRP shell withstands chemical fumes from nearby cooling water treatment (chlorine, ozone, pH adjusters) without delamination. Yet the composite material is only 60% the weight of steel equivalents, simplifying crane lifting and rooftop load calculations – a critical advantage for retrofit projects.

Factory-Direct Cost Transparency – No Middleman, No Surprise Upcharges
As the manufacturing source – not a trading agent – we control every cost node from raw resin procurement to fan motor winding. Our vertical facility produces 200+ units monthly, allowing bulk purchase of premium motors (ABB/Siemens or equivalent) and bearings (SKF) at OEM rates. We provide an itemized quotation breaking down material, fabrication, testing, and packing costs, so you see exactly what you pay for. This direct model typically undercuts European and Japanese competitors by 25–30% while maintaining CTI-certifiable performance.

Customization Flexibility – Voltage, Color, Fill Height, and Connection Orientations
Standardized doesn't mean rigid. We offer free customization of: motor voltage (380V/415V/460V/6.6kV), FRP panel RAL colors, fill layer height (adjustable for tropical or temperate zones), and inlet/outlet flange orientations (horizontal, vertical, or angled). We also provide optional anti-vibration spring mounts, freeze-protection heaters, and variable-frequency-drive (VFD) ready terminal boxes – all engineered to your P&ID without extending the standard 15‑ to 20‑working-day lead time for medium-sized orders.

Parameter Specifications

Product

Low Noise collecting Type Counterflow FRP Cooling Tower

Low Noise Counterflow FRP Cooling Tower | Factory Direct for Power Plant & HVAC Projects DBNL3J-12

Model

τ=27℃
Coolable water volume(m³/h)△t=5℃

Main Dimensions (mm)

Air Volume m³/h

Fan Diameter (mm)

Motor Power (kw)

weight (kg)

inlet pressure 10⁴Pa

noise at 10m dB (A)

Total Height

Maximum Diameter

self-weight

operating weight

DBNL3J-12

15

2333

1210

7200

700

0.6

217

775

1.96

40.3

DBNL3J-20

24

2423

1460

12400

800

0.8

244

958

2

41.1

DBNL3J-30

35

2642

1912

18000

1200

0.8

424

1734

2.21

43.5

DBNL3J-40

46

3142

1912

21500

1200

1.1

496

1896

2.6

43.5

DBNL3J-50

57

3130

2215

28000

1400

1.5

617

2505

2.65

44.7

DBNL3J-60

68

3430

2215

32300

1400

1.5

667

2829

2.78

45.7

DBNL3J-70

79

3444

2629

39200

1600

2.2

824

3816

3.03

47

DBNL3J-80

92

3744

2629

43400

1600

2.2

909

4240

2.86

47.5

DBNL3J-100

114

3694

3134

56000

1800

3

1014

5932

3.15

50

DBNL3J-125

142

3944

3134

67200

1800

4

1104

6158

3.15

50.7

DBNL3J-150

171

3953

3732

84000

2400

4

1744

8246

2.9

52

DBNL3J-175

200

4203

3732

94300

2400

5.5

1884

8582

3.15

53

DBNL3J-200

231

4235

4342

112000

2800

5.5

2208

11210

3.01

54.6

DBNL3J-250

283

4485

4342

134300

2800

7.5

2420

11983

3.26

55.6

DBNL3J-300

334

4623

5134

168000

3400

11

3648

17173

3.5

56.8

DBNL3J-350

395

4873

5134

187400

3800

11

3950

17850

3.75

57.3

DBNL3J-400

455

5018

6044

224000

3800

11

4406

23132

3.6

58.8

DBNL3J-450

514

5268

6044

242000

3800

11

4752

24510

3.85

58.8

DBNL3J-500

576

5619

6746

280000

4200

15

5887

30062

3.7

60

DBNL3J-600

680

6119

6746

302200

4200

18.5

6689

32164

4.2

61

Features

The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities.

Application



Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals.

Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries.

Power industry: auxiliary cooling system for thermal power plant and nuclear power plant.

Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.

Data center: Provides cooling water for server rooms.

Payment

T/T, Western Union.

Service

Customize and design the size and style according to requirements
