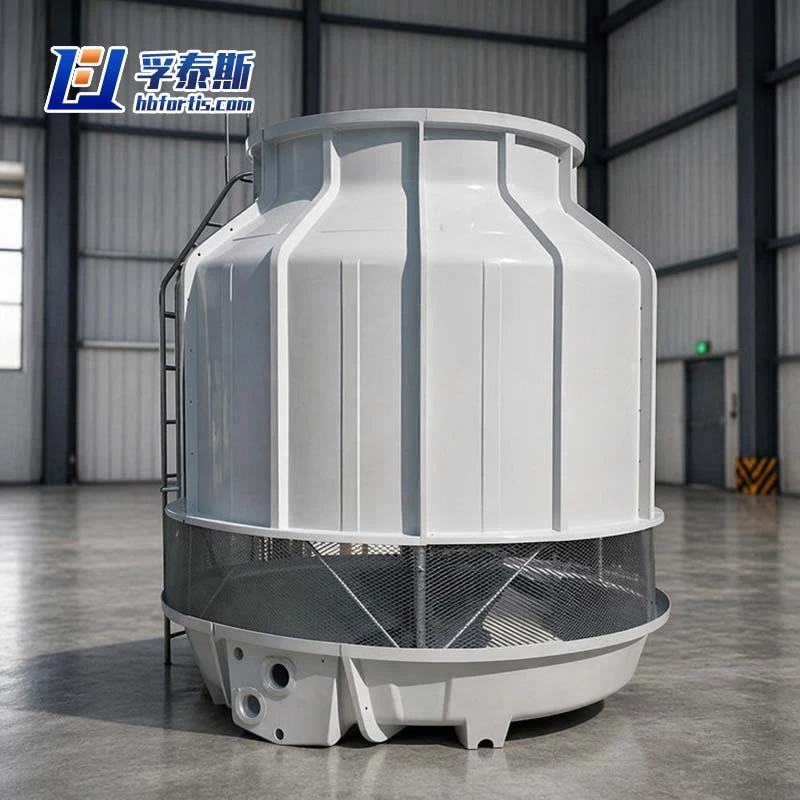

FRP Cooling Tower DBNL3J-12 Exporter for HVAC & Industrial Use

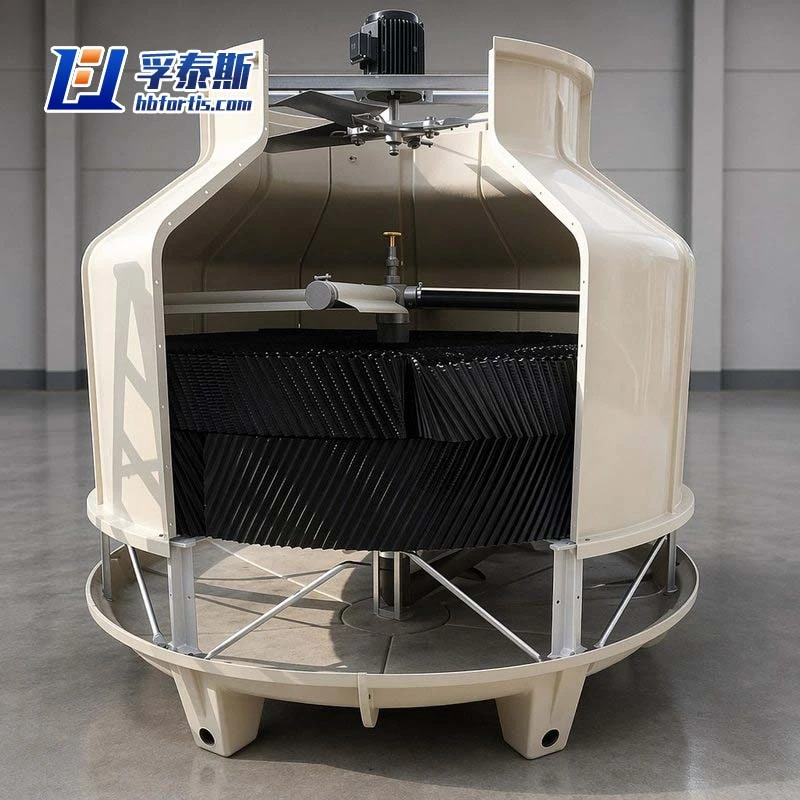

As a leading China-based exporter and factory-direct supplier of FRP cooling towers, we specialize in the DBNL3J-12 round counterflow cooling tower—a compact, low-noise solution engineered for HVAC systems, air conditioning chiller units, refrigeration equipment, and small-scale industrial process cooling. Constructed with corrosion-resistant FRP shells and durable PVC fill media, this model delivers efficient heat exchange with stable 12m³/h cooling capacity under standard 37°C–32°C–28°C conditions. Its rotating water distribution system ensures uniform flow, while the lightweight FRP structure reduces installation and shipping costs. Backed by CTI-compliant thermal performance and CE-certified manufacturing, our DBNL3J-12 offers reliable, energy-saving operation for global buyers seeking OEM, ODM, or direct wholesale procurement with fast lead times and professional after-sales support.

Hebei Fortis Technology Co., Ltd Product Brochure

Download

Inquire Now Next Product

Product Advantages Parameter Specifications

Product Advantages

Compact Round Counterflow Design for Space-Constrained Sites
The DBNL3J-12 features a round counterflow configuration that maximizes heat exchange efficiency within a minimal footprint. Unlike crossflow towers, this design allows air and water to move in opposite directions, ensuring a higher temperature differential per pass. Its cylindrical shape not only reduces wind resistance and structural stress but also makes it ideal for rooftop installations, urban HVAC rooms, and factory floors where floor space is at a premium—saving you significant real estate costs without compromising cooling performance.

Stable 12 m³/h Cooling Capacity Under Demanding Conditions
Engineered for precision, the DBNL3J-12 delivers a reliable cooling water flow rate of 12 cubic meters per hour under standard design conditions (inlet 37°C, outlet 32°C, wet-bulb 28°C). This consistent thermal performance ensures that your chiller systems, plastic injection molding machines, or medium-frequency induction furnaces operate at optimal temperatures year-round. The tower’s thermally calculated fill media and optimized air-to-water ratio guarantee that even during peak summer loads, your process temperatures remain stable, reducing downtime and product rejection rates.

Superior Corrosion-Resistant FRP Construction for Longevity
Manufactured from high-grade glass-reinforced plastic (FRP) with UV-stabilized resin, the DBNL3J-12 shell withstands harsh outdoor environments, chemical fumes, and saline air—common in coastal or industrial zones. The FRP material is inherently rust-proof, mildew-resistant, and requires no periodic painting or anti-corrosion coatings, unlike metal towers. This translates to a service life exceeding 15 years with minimal structural degradation, giving you a lower total cost of ownership and fewer replacement headaches over the long run.

Parameter Specifications

Product	Low Noise collecting Type Counterflow FRP Cooling Tower

Model	τ=27℃ Coolable water volume（m³/h）△t=5℃	Main Dimensions (mm)		Air Volume m³/h	Fan Diameter (mm)	Motor Power (kw)	weight (kg)		inlet pressure 10⁴Pa	noise at 10m dB (A)
Model	τ=27℃ Coolable water volume（m³/h）△t=5℃	Total Height	Maximum Diameter	Air Volume m³/h	Fan Diameter (mm)	Motor Power (kw)	self-weight	operating weight	inlet pressure 10⁴Pa	noise at 10m dB (A)
DBNL3J-12	15	2333	1210	7200	700	0.6	217	775	1.96	40.3
DBNL3J-20	24	2423	1460	12400	800	0.8	244	958	2	41.1
DBNL3J-30	35	2642	1912	18000	1200	0.8	424	1734	2.21	43.5
DBNL3J-40	46	3142	1912	21500	1200	1.1	496	1896	2.6	43.5
DBNL3J-50	57	3130	2215	28000	1400	1.5	617	2505	2.65	44.7
DBNL3J-60	68	3430	2215	32300	1400	1.5	667	2829	2.78	45.7
DBNL3J-70	79	3444	2629	39200	1600	2.2	824	3816	3.03	47
DBNL3J-80	92	3744	2629	43400	1600	2.2	909	4240	2.86	47.5
DBNL3J-100	114	3694	3134	56000	1800	3	1014	5932	3.15	50
DBNL3J-125	142	3944	3134	67200	1800	4	1104	6158	3.15	50.7
DBNL3J-150	171	3953	3732	84000	2400	4	1744	8246	2.9	52
DBNL3J-175	200	4203	3732	94300	2400	5.5	1884	8582	3.15	53
DBNL3J-200	231	4235	4342	112000	2800	5.5	2208	11210	3.01	54.6
DBNL3J-250	283	4485	4342	134300	2800	7.5	2420	11983	3.26	55.6
DBNL3J-300	334	4623	5134	168000	3400	11	3648	17173	3.5	56.8
DBNL3J-350	395	4873	5134	187400	3800	11	3950	17850	3.75	57.3
DBNL3J-400	455	5018	6044	224000	3800	11	4406	23132	3.6	58.8
DBNL3J-450	514	5268	6044	242000	3800	11	4752	24510	3.85	58.8
DBNL3J-500	576	5619	6746	280000	4200	15	5887	30062	3.7	60
DBNL3J-600	680	6119	6746	302200	4200	18.5	6689	32164	4.2	61
Features		The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities.
Application		Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals.
		Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries.
		Power industry: auxiliary cooling system for thermal power plant and nuclear power plant.
		Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.
		Data center: Provides cooling water for server rooms.
Payment		T/T, Western Union.
Service		Customize and design the size and style according to requirements
