FRP Cooling Tower

DBNLJ-20 Counterflow FRP Cooling Tower Supplier | Factory Direct for HVAC

Share:

We are a Chinese factory-direct supplier and exporter of the DBNLJ-20 counterflow FRP cooling tower, purpose-built for high-load industrial and commercial cooling scenarios — including HVAC plants, plastics molding workshops, and petrochemical intermediates processing. The counterflow airflow path delivers superior approach temperatures and reduces recirculation risks, while the corrosion-resistant FRP structure ensures longevity in saline or acidic ambient conditions. Backed by in-house engineering support, we provide end-to-end export services from customized electrical configurations to seaworthy packing, enabling rapid deployment for projects across Southeast Asia, the Middle East, and South America. Our pricing reflects true manufacturer margins, and our lead times consistently beat trading houses, making us a strategic partner for volume procurement and recurring replacement orders.

Hebei Fortis Technology Co., Ltd Product Brochure

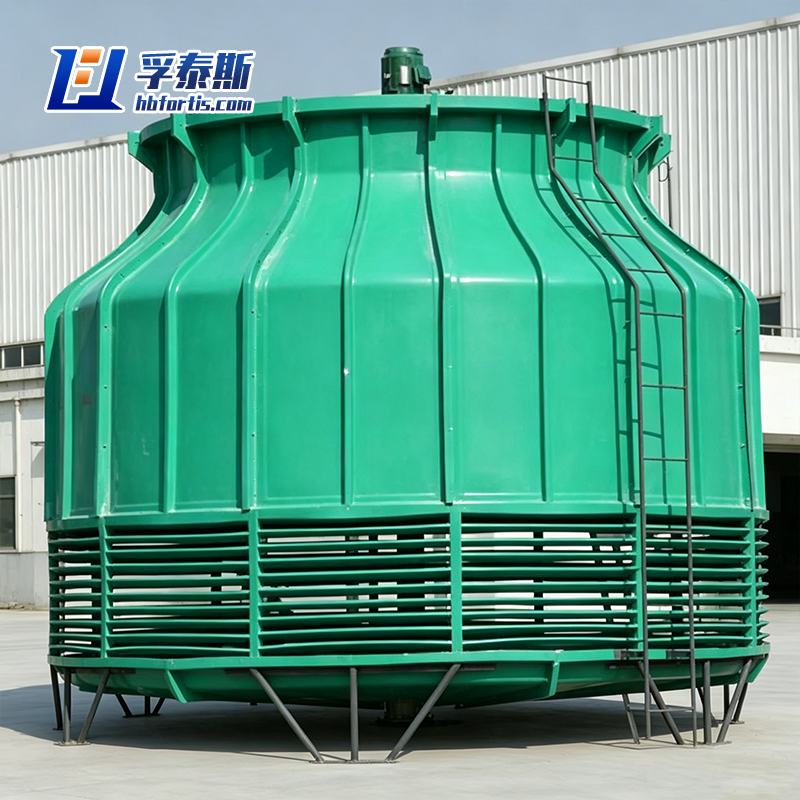

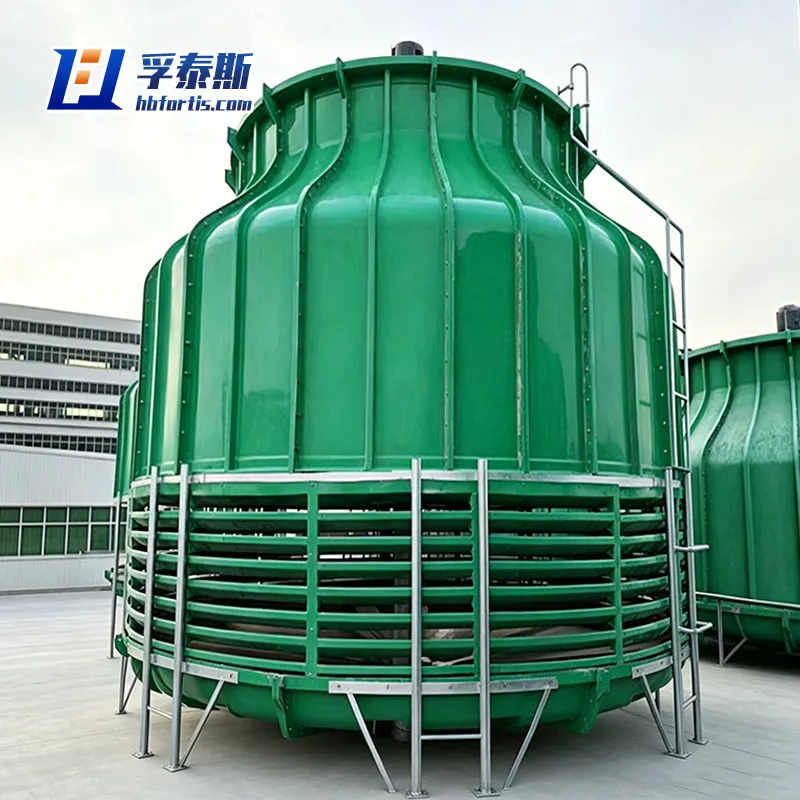

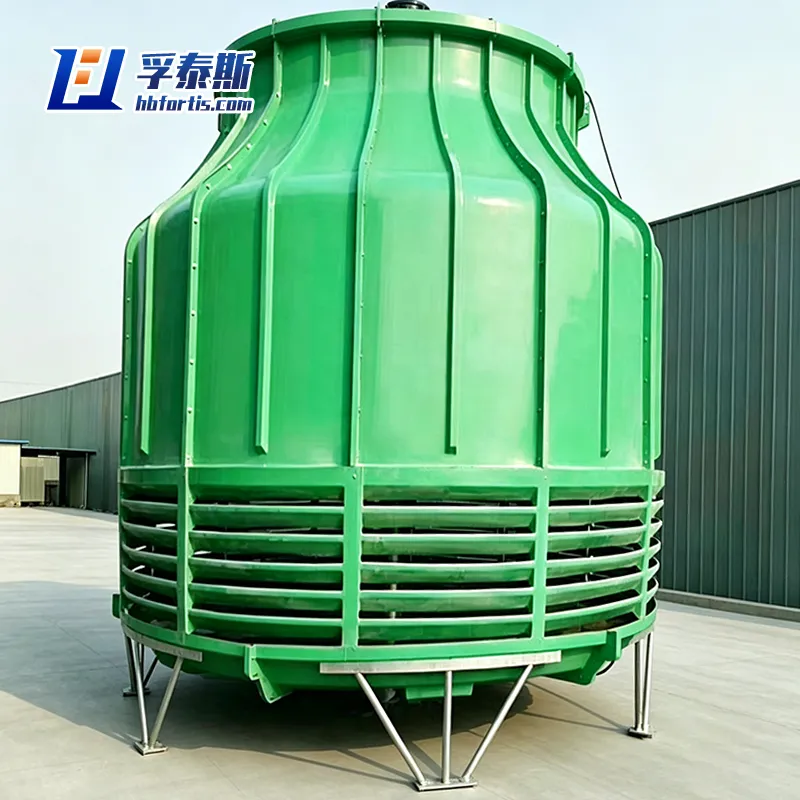

DBNLJ-20

Product Advantages

Superior Thermal Efficiency Through True Counterflow Design
The DBNLJ-20 employs a genuine counterflow heat exchange mechanism, where air travels vertically upward strictly opposite to the falling water stream. This opposing motion creates maximum temperature differential across the entire fill media, delivering a lower approach temperature than crossflow towers of comparable size. For end-users, this translates directly into reduced condenser load, lower compressor work, and measurable energy savings — especially critical in 24/7 operations like data center cooling or continuous injection molding lines.

Heavy-Duty FRP Construction for Harsh Environments
The entire casing, basin, and air inlet louvers are molded from high-grade, UV-stabilized FRP composites with flame-retardant additives. This material selection provides exceptional resistance to corrosion, chemical fumes, salt spray, and prolonged sunlight exposure — making the DBNLJ-20 ideally suited for coastal power plants, chemical processing facilities, and steel mill auxiliary cooling systems where carbon steel towers would suffer rapid degradation.

Extremely Low Drift Loss and Water Conservation
Equipped with high-efficiency drift eliminators featuring multi-pass zigzag baffles, the DBNLJ-20 limits water drift to less than 0.001% of circulating flow rate. This not only reduces make-up water consumption and chemical treatment costs but also minimizes environmental fogging and algae buildup around the tower footprint. For regions facing water scarcity or strict discharge regulations, this design offers both compliance and operational economy.

Parameter Specifications

Product

Low Noise collecting Type Counterflow FRP Cooling Tower

Low Noise Counterflow FRP Cooling Tower | Factory Direct for Power Plant & HVAC Projects DBNL3J-12

Model

τ=27℃
Coolable water volume(m³/h)△t=5℃

Main Dimensions (mm)

Air Volume m³/h

Fan Diameter (mm)

Motor Power (kw)

weight (kg)

inlet pressure 10⁴Pa

noise at 10m dB (A)

Total Height

Maximum Diameter

self-weight

operating weight

DBNL3J-12

15

2333

1210

7200

700

0.6

217

775

1.96

40.3

DBNL3J-20

24

2423

1460

12400

800

0.8

244

958

2

41.1

DBNL3J-30

35

2642

1912

18000

1200

0.8

424

1734

2.21

43.5

DBNL3J-40

46

3142

1912

21500

1200

1.1

496

1896

2.6

43.5

DBNL3J-50

57

3130

2215

28000

1400

1.5

617

2505

2.65

44.7

DBNL3J-60

68

3430

2215

32300

1400

1.5

667

2829

2.78

45.7

DBNL3J-70

79

3444

2629

39200

1600

2.2

824

3816

3.03

47

DBNL3J-80

92

3744

2629

43400

1600

2.2

909

4240

2.86

47.5

DBNL3J-100

114

3694

3134

56000

1800

3

1014

5932

3.15

50

DBNL3J-125

142

3944

3134

67200

1800

4

1104

6158

3.15

50.7

DBNL3J-150

171

3953

3732

84000

2400

4

1744

8246

2.9

52

DBNL3J-175

200

4203

3732

94300

2400

5.5

1884

8582

3.15

53

DBNL3J-200

231

4235

4342

112000

2800

5.5

2208

11210

3.01

54.6

DBNL3J-250

283

4485

4342

134300

2800

7.5

2420

11983

3.26

55.6

DBNL3J-300

334

4623

5134

168000

3400

11

3648

17173

3.5

56.8

DBNL3J-350

395

4873

5134

187400

3800

11

3950

17850

3.75

57.3

DBNL3J-400

455

5018

6044

224000

3800

11

4406

23132

3.6

58.8

DBNL3J-450

514

5268

6044

242000

3800

11

4752

24510

3.85

58.8

DBNL3J-500

576

5619

6746

280000

4200

15

5887

30062

3.7

60

DBNL3J-600

680

6119

6746

302200

4200

18.5

6689

32164

4.2

61

Features

The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities.

Application



Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals.

Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries.

Power industry: auxiliary cooling system for thermal power plant and nuclear power plant.

Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.

Data center: Provides cooling water for server rooms.

Payment

T/T, Western Union.

Service

Customize and design the size and style according to requirements
