FRP Cooling Tower

China Square Cross Flow FRP Cooling Tower AHBLCD-700 for HVAC | Factory Direct Exporter

Share:

Unlock premium cooling efficiency with our AHBLCD-700 Square Cross Flow FRP Cooling Tower, available at factory-direct prices. As a dedicated export supplier from China, we design this tower to meet the rigorous demands of large-scale HVAC systems and heavy-duty industrial process cooling. The square cross-flow design minimizes water drift and energy consumption while providing easy maintenance access to the fill and distribution system. Whether you are upgrading your central plant or sourcing for a refinery, our FRP cooling tower offers superior corrosion resistance and stable cooling performance, ensuring your operations run at peak efficiency. Partner with us for reliable delivery and competitive wholesale pricing.

Hebei Fortis Technology Co., Ltd Product Brochure

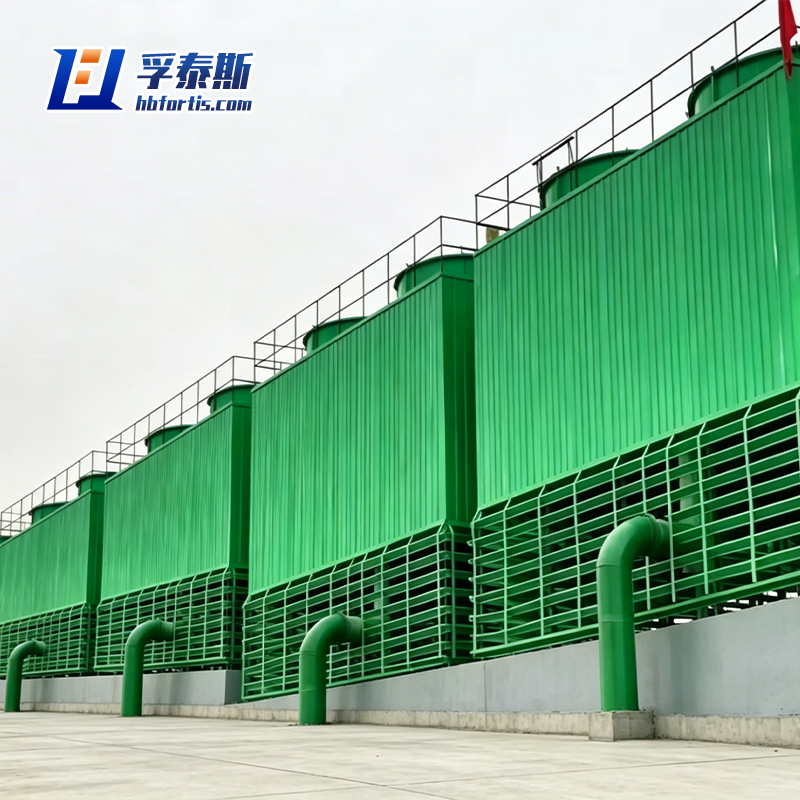

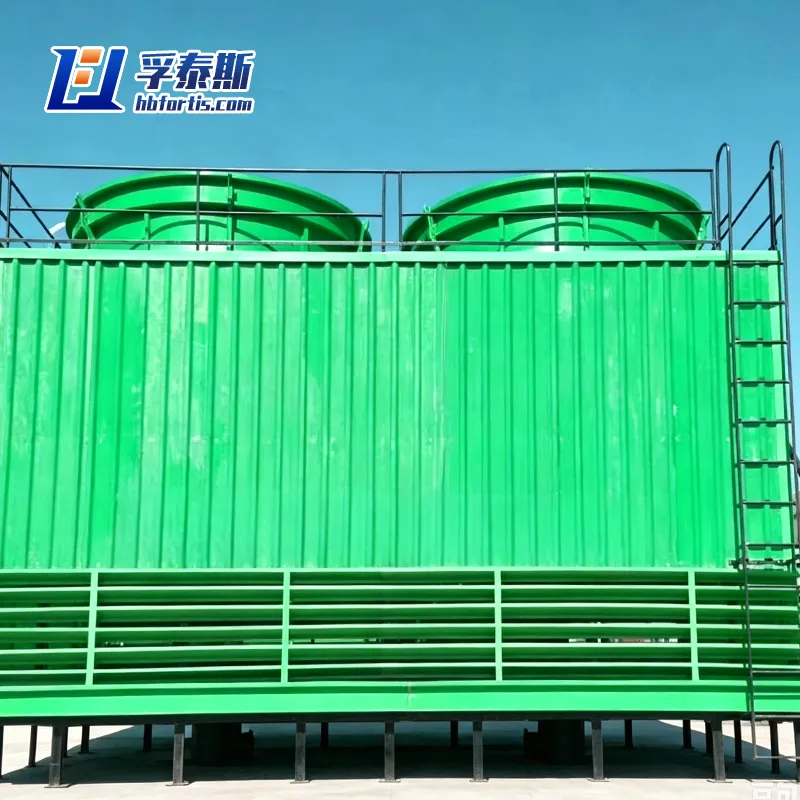

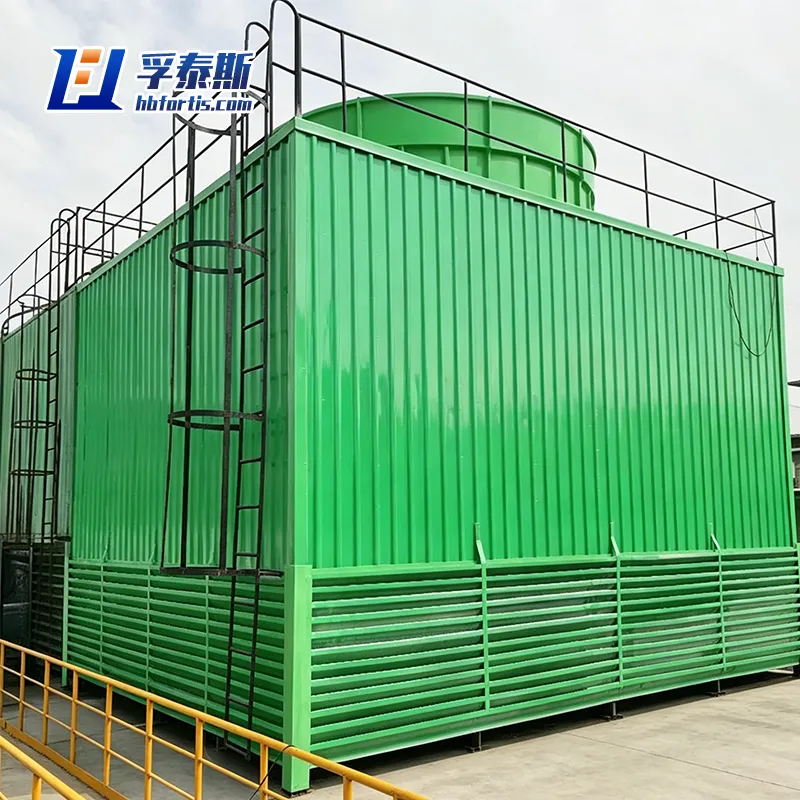

AHBLCD-700

Product Advantages

Optimized Cross-Flow Design for Maximum Thermal Efficiency
The AHBLCD-700 adopts a square cross-flow configuration that allows water to flow vertically downward while air moves horizontally across the fill media. This design maximizes the air-to-water contact surface area, resulting in superior heat dissipation with significantly lower pressure drop compared to counter-flow alternatives. The result is consistent cooling performance even under fluctuating ambient conditions, making it ideal for continuous industrial operations.

Heavy-Duty Anti-Corrosion FRP Construction for Longevity
Crafted from high-grade, UV-resistant FRP (Fiber-Reinforced Plastic), the entire shell and basin structure of the AHBLCD-700 is engineered to withstand aggressive environments—including chemical exposure, high humidity, and saline coastal air. Unlike metallic towers that suffer from rust and galvanic corrosion, this FRP body ensures a maintenance-free exterior, extending the service life well beyond industry standards while preserving its structural integrity and aesthetic appearance.

Ultra-Low Noise Operation for Urban and Sensitive Installations
Equipped with specially designed low-speed axial fans and a vibration-damping motor mount system, the AHBLCD-700 operates at noise levels significantly lower than conventional cooling towers. The cross-flow water splashing pattern is inherently quieter, and the optional low-noise impellers further reduce acoustic footprint. This makes the tower an exceptional choice for installations near hospitals, office complexes, residential areas, or any site with stringent noise abatement requirements.

FRP Fiberglass GFRP Square Low Noise Type Counterflow Cooling Tower

Product

 Square Cross Flow Cooling Tower

Model

τ=28℃
Coolable water volume(m³/h)△t=5℃

Main Dimensions (mm)

Air Volume m³/h

Fan Diameter (mm)

Motor Installed Capacity (kw)

Weight (t)

τ=28℃
Coolable water volume(m³/h)△t=10℃

Noise at standard point
dB(A)

Total Height

Length×
Width

self-weight

operating weight

AHBLD/HBLD-300

300

4514

7250×

3810

167000

3400

7.5

5.85

13.38

/

59.0

AHBLD/HBLD-500

500

5230

8033×

4650

260000

4200

11.0

9.2

17.24

/

61.5

AHBLD/HBLD-700

700

5319

8930×

6640

370000

5000

18.5

12.95

26.05

/

62.6

AHBLCD/HBLCD-300

300

6230

10650×

3810

167000

3400

7.5

7.05

14.18

/

52.5

AHBLCD/HBLCD-500

500

7030

11640×

4650

260000

4200

11.0

10.8

18.84

/

53.7

AHBLCD/HBLCD-700

700

7180

12540×

6640

370000

5000

18.5

14.75

26.81

/

54.5

AHBLG/HBLG-300

/

4514

7250×

3810

200000

3400

11.0

6.13

13.66

300

64.5

AHBLG/HBLG-500

/

5230

8033×

4650

320000

4200

18.5

9.42

17.46

500

65.0

AHBLG/HBLG-700

/

5319

8930×

6640

450000

5000

30.0

13.19

26.29

700

66.0

The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width

Features

The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities.

Application



Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals.

Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries.

Power industry: auxiliary cooling system for thermal power plant and nuclear power plant.

Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.

Data center: Provides cooling water for server rooms.

Payment

T/T, Western Union.

Service

Customize and design the size and style according to requirements
