AHBLG-700 Stainless Steel Cross Flow Tower | China Exporter for Heavy Industry

Share:

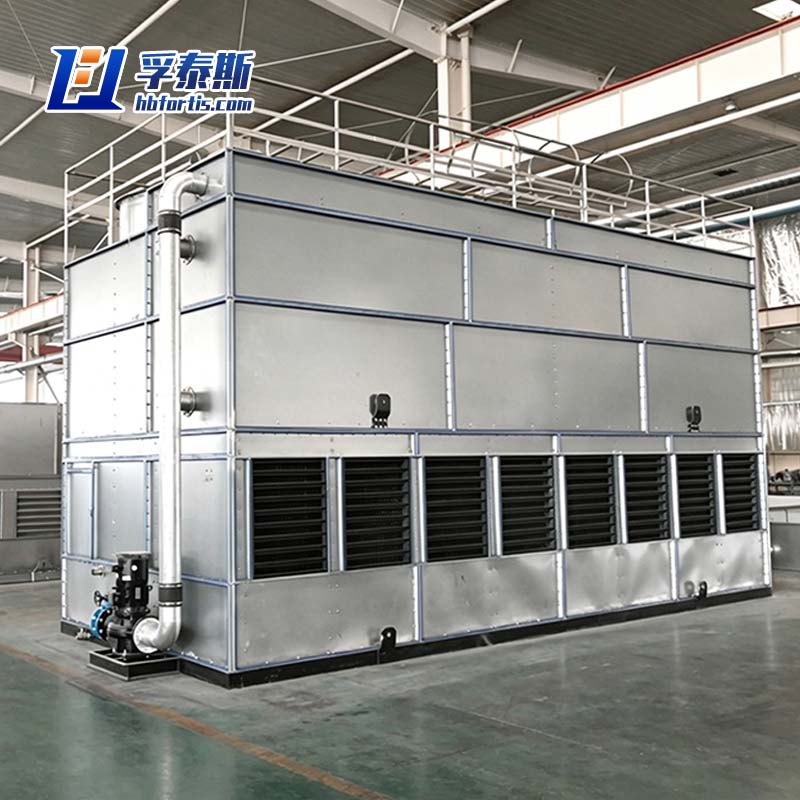

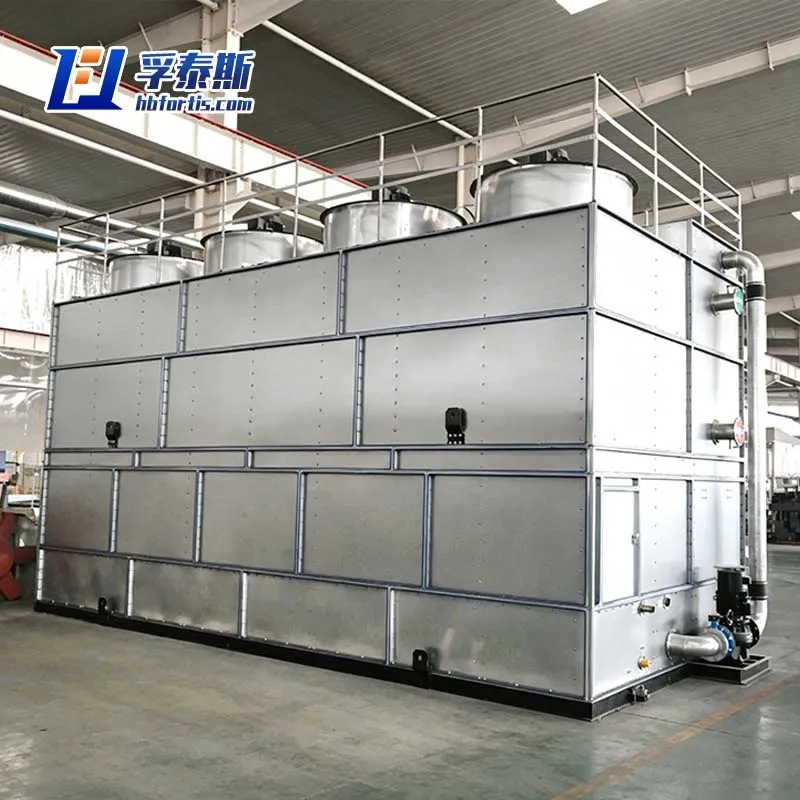

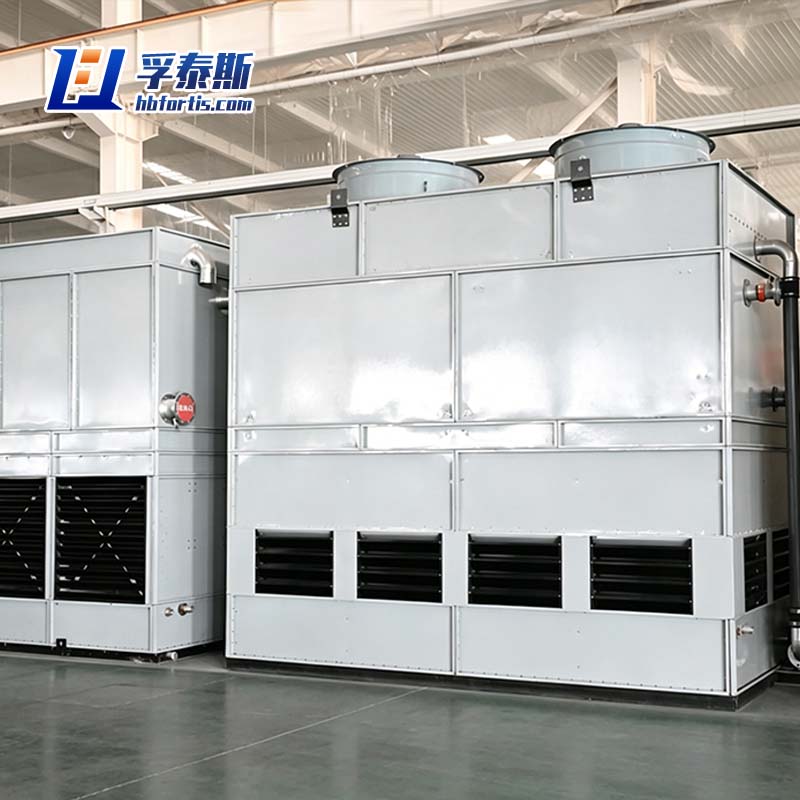

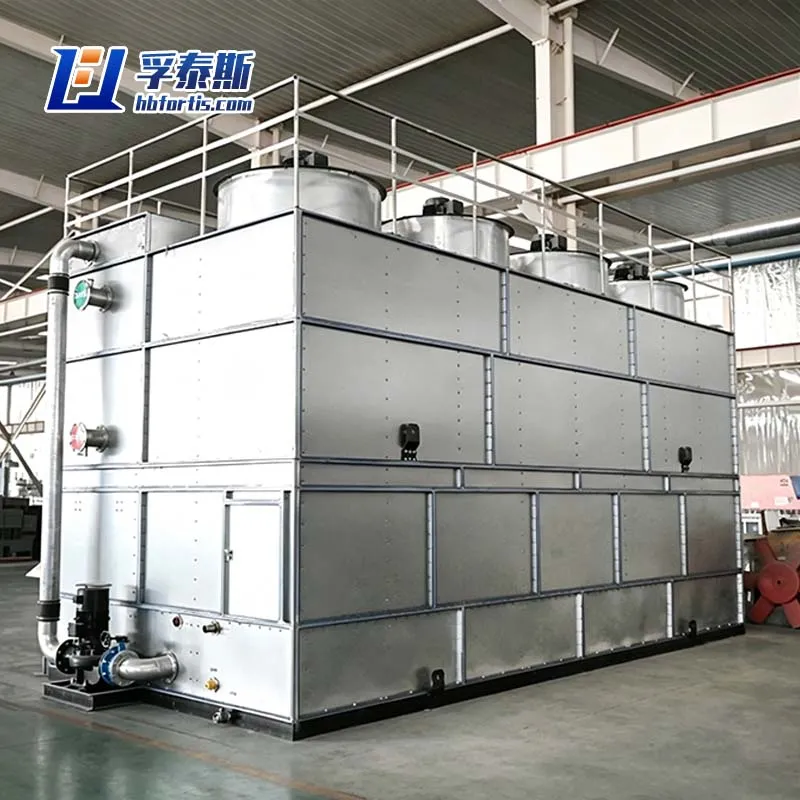

The AHBLG-700 cross-flow cooling tower is rated at 700 m³/h recirculation flow with a maximum heat rejection capacity of approximately 4,200 kW under 37°C entering water and 27°C wet-bulb conditions. Its square footprint and side-access air inlets allow flexible layout arrangements in congested plant yards, while the stainless steel shell eliminates degradation from UV exposure and chemical fume attack—a frequent failure mode in galvanized towers installed near refinery flares or acid pickling lines. The fill media uses a fluted, self-cleaning profile that maintains wetting efficiency even with moderate fouling, and the oversized fan deck accommodates both belt-drive and gear-drive speed adjustments for site-specific noise abatement requirements. For international buyers, we offer INCOTERMS flexibility (FOB, CIF, or EXW) and partner with freight forwarders experienced in oversized cargo to major ports like Shanghai, Ningbo, and Shenzhen. Each unit is accompanied by a structural calculation report for wind load and earthquake zones, plus a detailed erection sequence video, enabling your local contractors to complete installation without waiting for our overseas technicians.

Hebei Fortis Technology Co., Ltd Product Brochure

AHBLG-700

Product Advantages

Drift Eliminators and Low Drift Loss for Environmental Compliance
Integrated high-efficiency drift eliminators reduce water carryover to less than 0.005% of circulating flow, which not only conserves expensive treated water and chemical inhibitors but also helps your facility meet strict local discharge and airborne particulate regulations. This feature is particularly critical for projects requiring LEED certification or operating under EPA-style emission caps, as it minimizes visible plume and reduces the need for frequent chemical re-dosing.



Modular Fill Pack with Tool-Accessible Maintenance
The cooling fill is arranged in removable, stackable PVC blocks that can be individually extracted through large maintenance access doors without dismantling major structural components. This modularity allows on-site cleaning, replacement, or inspection within hours, not days, and eliminates the need for confined-space entry. For export clients with remote operating sites, we provide spare fill sections in the same container, ensuring that routine overhaul does not shut down your production line.

Oversized Basin and Low-NPSH Hot Water Sump for Pump Protection
The cold-water basin features an enlarged storage volume and a specially designed low-NPSH (Net Positive Suction Head) hot water sump that prevents cavitation and vortex air entrainment at the pump suction connection. This engineering detail safeguards centrifugal pumps from vibration, seal damage, and loss of prime—common failure points in undersized towers. Combined with dual stainless steel strainers at the outlet, it guarantees a clean, steady water supply to your circulation pumps under varying load conditions.

FRP Fiberglass GFRP Square Low Noise Type Counterflow Cooling Tower

Product

 Square Cross Flow Cooling Tower

Model

τ=28℃
Coolable water volume(m³/h)△t=5℃

Main Dimensions (mm)

Air Volume m³/h

Fan Diameter (mm)

Motor Installed Capacity (kw)

Weight (t)

τ=28℃
Coolable water volume(m³/h)△t=10℃

Noise at standard point
dB(A)

Total Height

Length×
Width

self-weight

operating weight

AHBLD/HBLD-300

300

4514

7250×

3810

167000

3400

7.5

5.85

13.38

/

59.0

AHBLD/HBLD-500

500

5230

8033×

4650

260000

4200

11.0

9.2

17.24

/

61.5

AHBLD/HBLD-700

700

5319

8930×

6640

370000

5000

18.5

12.95

26.05

/

62.6

AHBLCD/HBLCD-300

300

6230

10650×

3810

167000

3400

7.5

7.05

14.18

/

52.5

AHBLCD/HBLCD-500

500

7030

11640×

4650

260000

4200

11.0

10.8

18.84

/

53.7

AHBLCD/HBLCD-700

700

7180

12540×

6640

370000

5000

18.5

14.75

26.81

/

54.5

AHBLG/HBLG-300

/

4514

7250×

3810

200000

3400

11.0

6.13

13.66

300

64.5

AHBLG/HBLG-500

/

5230

8033×

4650

320000

4200

18.5

9.42

17.46

500

65.0

AHBLG/HBLG-700

/

5319

8930×

6640

450000

5000

30.0

13.19

26.29

700

66.0

The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width

Features

The FRP cooling tower serves not only as a temperature regulator but also delivers an efficient, durable, and maintenance-free solution with optimized lifecycle costs. By harnessing the unique properties of FRP materials, it fundamentally addresses the critical challenges of corrosion and lifespan limitations in harsh operating environments, making it the go-to choice for cooling systems in modern industrial and commercial facilities.

Application



Central air conditioning system: refrigeration station for commercial buildings, hotels and hospitals.

Industrial refrigeration: process cooling for food processing, chemical, pharmaceutical and plastic industries.

Power industry: auxiliary cooling system for thermal power plant and nuclear power plant.

Manufacturing industry: circulating water cooling for metallurgical and mechanical processing plants.

Data center: Provides cooling water for server rooms.

Payment

T/T, Western Union.

Service

Customize and design the size and style according to requirements
